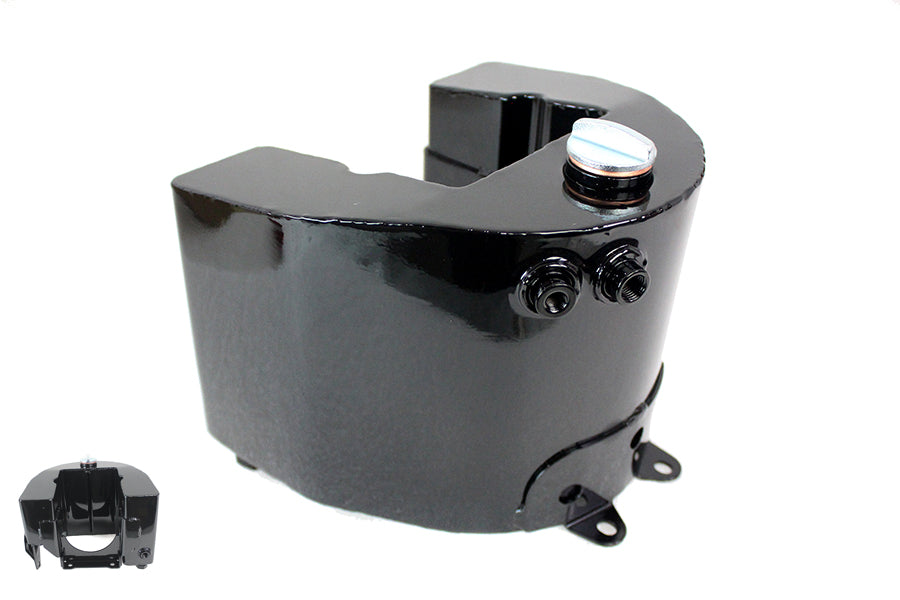

40-0636 - Replica 1936 Knucklehead Black Oil Tank

Replica 1936 Knucklehead wrap around oil tank is the original type with female fittings for banjo bolts. Features a non embossed smooth top and lower panels.
Black tank has a zinc plated cap and is equipped with a screw in dipstick that includes a copper sealing washer. Tank does not have battery rod tabs. *NOTE: Must order banjo bolts and fittings for oil lines separately. Lower right hand feed outlet must be tapped larger to fit a banjo bolt. *NOTE: Can be used in later applications by changing the battery rods to earth style battery rods. *NOTE: Features 1/8 NPT internal threads for vent and return lines. *NOTE: The battery compartment dimensions are 5 wide x 4-1/2 long x 7 tall. The left vent hole is 3/8 -24 TPI and the right return hole is 1/2 -20 TPI. Clear threads with a tap before final assembly. (Recommended) Cap is included. Requires the purchase of rubber or steel fittings for oil lines.

Fits:
EL 1936-1940
FL 1941-1957
UL 1938-1947

UOM: EA
Country Of Origin: TAIWAN

Accessory Items:
40-0480 - Replica Black Oil Tank
40-0877 - WR Hex Barb Oil Line Fitting Set Zinc Plated
40-0638 - Replica 1936 Knucklehead Raw Oil Tank
7612-3 - Cadmium Oil Line Fitting

Tech Notes: Suggested to use with #40-0325 Oil Feed Valve Assembly Zinc Plated. Suggested to use with #3003-3 Oil Line Banjo Bolt and Washer Kit. Suggested to use with #3069-3 Oil Tank Vent Pipe Nipple Bolt and Washer Kit. Suggested to use with #42-0877 Replica Oil Tank Plate.
