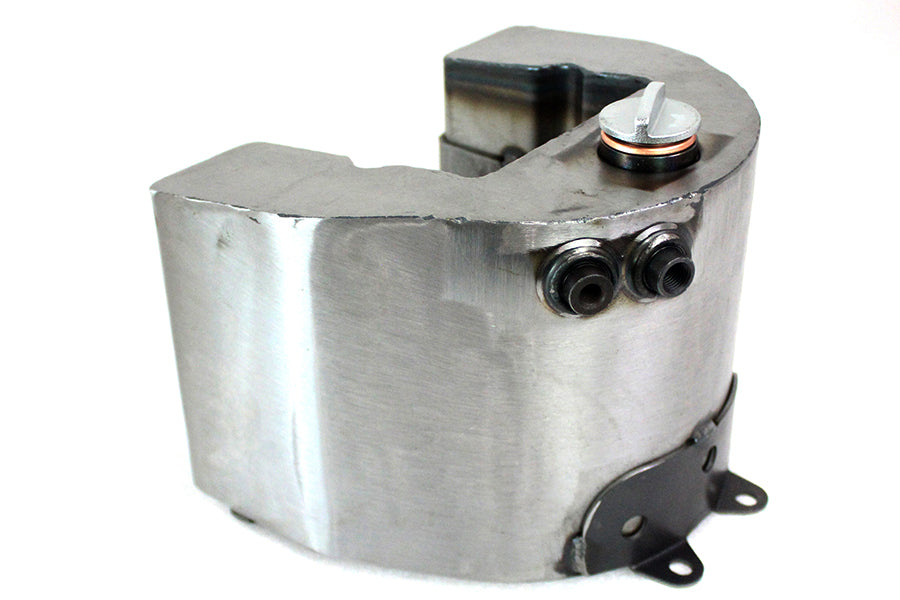

40-0638 - Replica 1936 Knucklehead Raw Oil Tank

40-0638 - Replica 1936 Knucklehead Raw Oil Tank

$340.00 Sale Save


Item is in stock Only 10 left in stock Item is out of stock Item is unavailable

Replica 1936 Knucklehead wrap around oil tank is the original type with female fittings for banjo bolts. Features a non embossed smooth top and lower panels.
Tank is equipped with a screw in dipstick. Tank does not have battery rod tabs. *NOTE: Must order banjo bolts and fittings for oil lines separately. Lower right hand feed outlet must be tapped larger to fit a banjo bolt. *NOTE: Can be used in later applications by changing the battery rods to earth style battery rods. *NOTE: Features 1/8 NPT internal threads for vent and return lines. *NOTE: The battery compartment dimensions are 5 wide x 4-1/2 long x 7 tall. The left vent hole is 3/8 -24 TPI and the right return hole is 1/2 -20 TPI. Clear threads with a tap before final assembly. (Recommended) Cap is included. Requires the purchase of rubber or steel fittings for oil lines.

EL 1936-1940
FL 1941-1957
UL 1938-1947

Country Of Origin: TAIWAN

Accessory Items:
40-0877 - WR Hex Barb Oil Line Fitting Set Zinc Plated
7612-3 - Cadmium Oil Line Fitting
40-0620 - Replica Oil Tank Chrome with Smooth Top
40-0636 - Replica 1936 Knucklehead Black Oil Tank
