40-0480
40-0480 - Replica Black Oil Tank by Wyatt Gatling

Wyatt Gatling

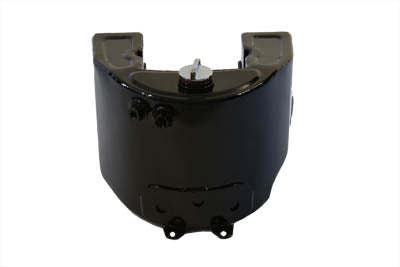

40-0480 - Replica Black Oil Tank

$350.00 Sale • Save

SKU 40-0480

Item is in stock Only 10 left in stock Item is out of stock Item is unavailable

Replica 1936 oil tank includes original style and accoutrements in gloss black. Tank has a smooth top seam and has an embossed relief on the top panel as the late 1936 - early 1937. Specifically for 1936 EL Ovehead Valve! Rear feed fitting hole must be tapped larger to fit a banjo bolt. *NOTE: Must order fittings for steel lines or hoses separately. *NOTE: Features 1/8 NPT internal threads for vent and return lines. *NOTE: The battery compartment dimensions are 5 inch wide x 4-1/2 inch long x 7 inch tall.

FITS
  • 1936 EL

MEASUREMENTS
  • Height Front: 7 inches
  • Height Rear: 6-3/8 inches
  • Depth: 8-1/4 inches
  • Depth of Battery: 5 inches
  • Width: 10 inches
  • Battery Width: 5 inches
ACCESSORIES
  • 3003-3 - Oil Line Banjo Bolt and Washer Kit
  • 42-9918 - Parkerized Battery Rod Set with Flag and Pads
  • 31-0544 - Parkerized Oil Tank to Fender Mount
  • 40-0620 - Replica Oil Tank Chrome with Smooth Top
  • 42-0877 - Replica Oil Tank Plate
REPLACEMENT
  • 8115-1 - Cadmium Stock Type Timing Plug
  • 8114-1 - Chrome Stock Type Timing Plug
TECHNICAL SPECIFICATIONS
  • Suggested to use with #9601-10 Inner Primary Cover and Chain Mount Kit.
