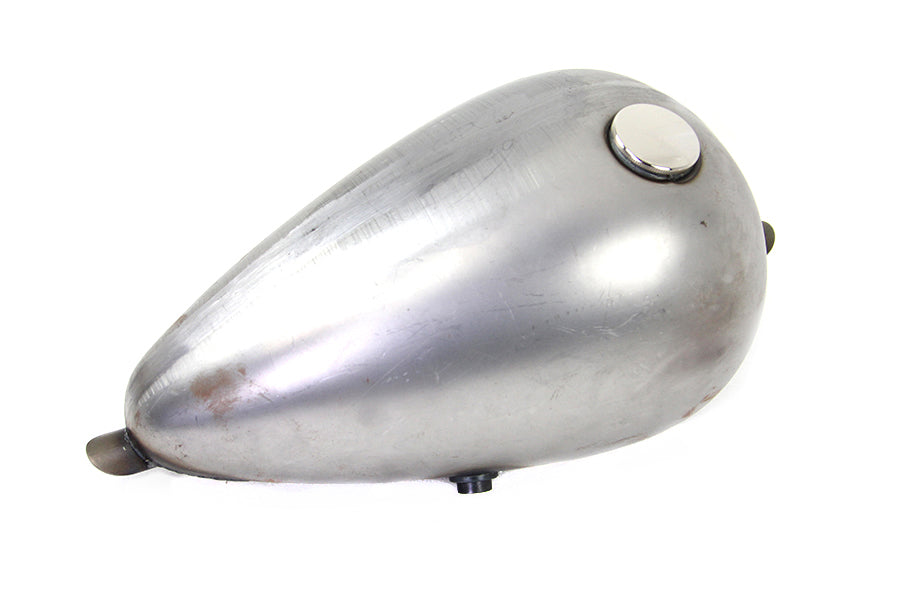

38-0693 - Chopper Axed 2.2 Gallon Gas Tank

Gas tank has a right side petcock opening and a fuel capacity of 2.2 gallons. It uses a single bayonet style gas cap and has front and rear mount tabs.
Right side is 3/8 NPT female left side is 1/4 NPT female for petcocks. Petcock tunnel is 2-1/2 wide. Tabs are front and rear undrilled. Check the tank for flaws and fit before painting. It requires sanding and primer. Do not grind or sand the seams or joints. Check the petcock opening making sure the petcock can be easily installed. The petcock fitting should be masked or plugged during painting for easy installation of the petcock. The petcock must be ordered separately. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to help stop leaks and prevent corrosion. *Note: UPS may consider this part as packaged oversize for shipment as compared to the actual weight which will result in higher shipping costs.

UOM: EA
Country Of Origin: TAIWAN

Accessory Items:
38-0679 - Chopper Axed 3.3 Gallon Gas Tank
38-0783 - Chopper Peanut Gas Tank
38-0968 - Mid Tunnel Screw Bung Peanut Gas Tank
38-0697 - Chopper Axed 2.2 Gallon Gas Tank

Tech Notes: Suggested to use with #35-0400 Petcock Wing Type Chrome. Suggested to use with #38-0310 Stock Style Gas Cap Vented
Measurement: Tunnel Length: 15-5/8 inches
