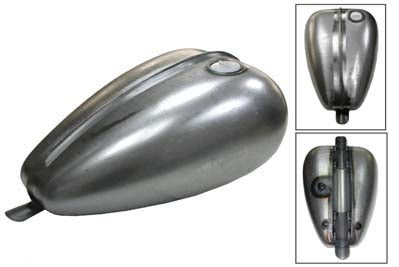

38-0679 - Chopper Axed 3.3 Gallon Gas Tank
SKU 38-0679
Gas tank is a chopper axed gas tank. It has a right side petcock opening and fuel capacity of 3.3 gallons. The tank features a screw type bung and accepts a ratcheting style vented gas cap. Gas cap is not included. The tank features center rails and two mount tabs and a 3/8 inch NPT outlet with 2 x 1/4 inch crossover outlets on either side of the rear to allow for multiple choices for routing fuel lines. Check the tank for flaws and fit before painting. Do not grind or sand the seams or joints. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to help stop leaks and prevent corrosion. Check the petcock opening making sure the petcock can be easily installed. Petcock fitting should be masked or plugged during painting for easy installation of the petcock. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.
FITS
- 0- Custom - application
MEASUREMENTS
- Top Length: 16 inches
- Bottom Length: 17 inches
- Rear Width: 4-1/2 inches
- Front Width: 12 inches
- Rear Height: 3 inches
- Front Height: 7 inches
- Front Tunnel Height: 1-3/4 inches
- Rear Tunnel Height: 1 inches
- Tunnel Length: 19-3/4 inches
- Tunnel Front Width: 2-5/8 inches
- Tunnel Middle Width: 2-3/4 inches
- Tunnel Rear Width: 2-3/8 inches
