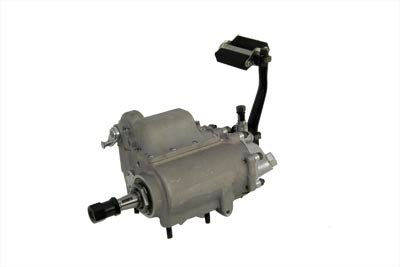

17-0000 - Replica 4-Speed Jockey Transmission

17-0000 - Replica 4-Speed Jockey Transmission

$2,360.00 Sale Save


Item is in stock Only 0 left in stock Item is out of stock Item is unavailable

Replica 4-speed transmission is jockey type with kicker cover.
It includes original cast case with early style main drive gear 44 rollers and 2:1 ratio speedometer drive gear internal parts original style aluminum kicker cover and components clutch rod throwout bearing ratchet top with natural finish kick cover with natural finish 1941-1953 style one piece black kicker arm mount studs hub nut seal and key. Transmission comes fully assembled and has an FL style 3.00:1.00 first gear ratio. This transmission is kick starter only. No Manufacturer's Statement of Origin required Bill of Sale only. *NOTE: This handshift transmission shifts 1-back and 3-forward. Transmission accepts 2:1 ration speedometer. *NOTE: All transmissions are fitted with a 22 tooth countershaft sprocket (V-Twin #19-0081). Various sizes available separately; 20 26mm tooth.

EL 1936-1940
FL 1941-1964
UL 1937-1948

Country Of Origin: USA

Suggested Items:
17-2525 - 4-Speed FL Transmission Assembly
17-0754 - 4 Speed Jockey Top Assembly
18-3203 - Clutch Wafer Throw Out Bearing Kit
12-2108 - Kick Starter Cover Stud Set

Accessory Items:
17-2539 - Jockey FL Transmission Assembly
17-0035 - Replica 4-Speed Jockey Transmission
17-0247 - Transmission Mounting Plate Kit Black
17-2500 - Replica 4-Speed Jockey Transmission

Tech Notes: When using for a 1946 and earlier application the shifter arm will need to be turned 180 degrees.
