17-2500 - Replica 4-Speed Jockey Transmission

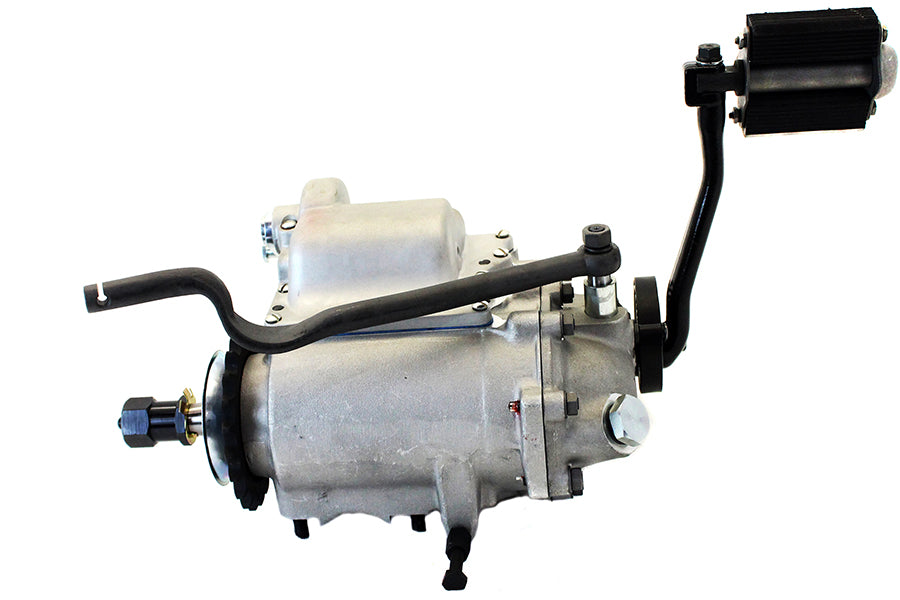

Replica 4-speed transmission is jockey type with kicker cover. Aluminum kick starter cover features a natural finish. Kicker arm and spring features a gloss black painted finish.
Kit includes original cast case with early style main drive gear 44 rollers neutral switch 2:1 ratio speedometer drive gear internal parts original style aluminum kicker cover and components clutch rod throwout bearing ratchet top with natural finish with chrome dust cover one piece black kicker arm mount studs hub nut 23 tooth drive sprocket seal and key. Transmission comes fully assembled and has an FL style 3.00:1.00 first gear ratio.This transmission is kick starteronly. No Manufacturer's Statement of Origin required. Bill of Sale only. *NOTE: This handshift transmission shifts 1-back and 3-forward.

Fits:
EL 1936-1940
FL 1941-1964
UL 1937-1948

UOM: EA
Country Of Origin: USA
