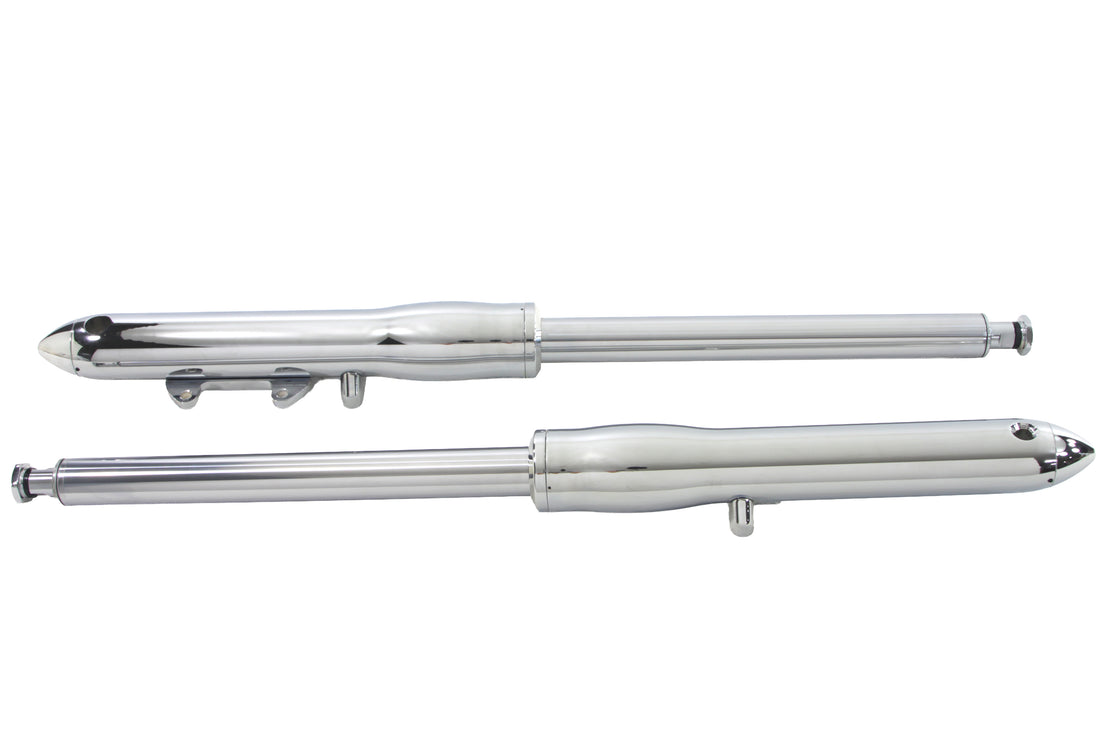

24-1632 - Factory Sample 41mm Fork Slider Assembly
SKU 24-1632
Assembly features chrome sliders with fork tubes and components installed. 41mm fork sliders can also be used on 1948-1984 FL 1971-1984 FX 1986-1999 FLST 1984-1999 FXST 1986-1999 FLST and all billet or stock type 41mm triple trees. The axle holes go straight through on both sides. 1984-1999 FXST calipers are needed for these sliders. *NOTE: Requires installer to fabricate correct axle. Drain assembly lube. We recommend 20 weight oil for average conditions. The amount of fork oil per leg is 10.2 ounces. Factory sample are brand new pre-production parts but have imperfections in the finished surface. Check threaded and bearing holes for excess plating before installation. There are no physical defects such as cracks or holes there will be cosmetic imperfections only. Sample parts may show marks from installation test and fitment.
FITS
- 0- Custom - application
MEASUREMENTS
- Axle Length: 10-3/4 inches
- Center to Center: 33-1/8 inches
- Total Length: 35-3/8 inches
ACCESSORIES
TECHNICAL SPECIFICATIONS
- Suggested to use with #24-0230 1inch Taper Bearing Neck Conversion Kit
