24-0230 - Spring Fork Installation Kit

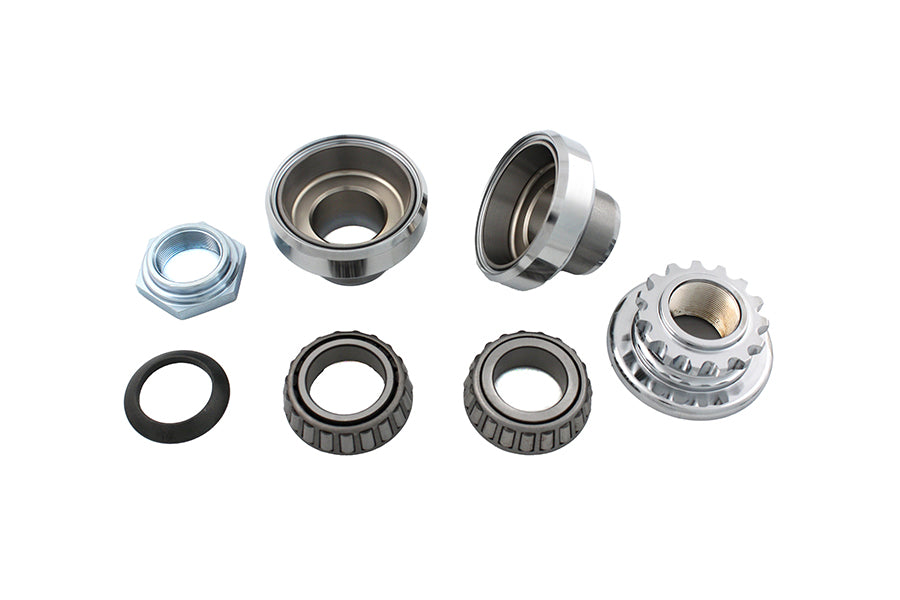

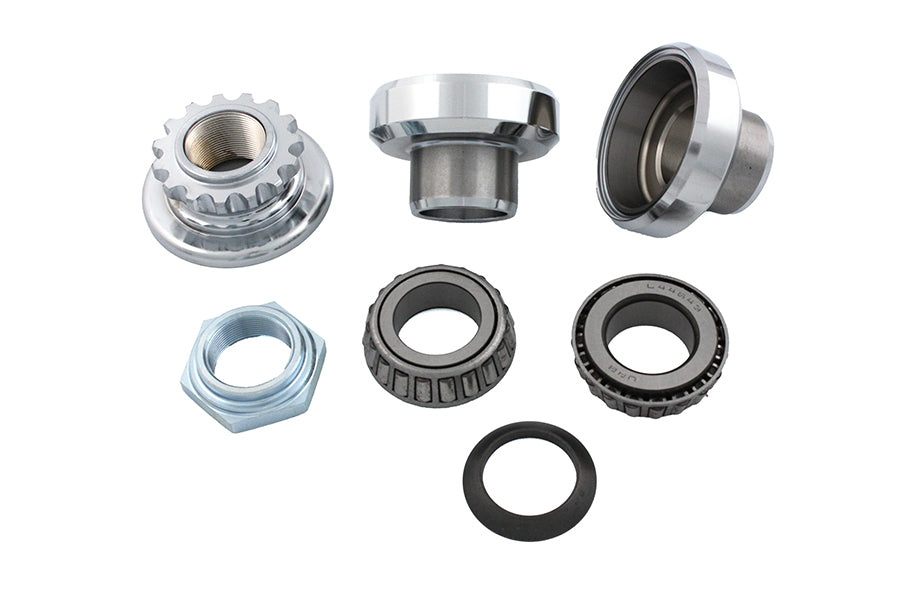

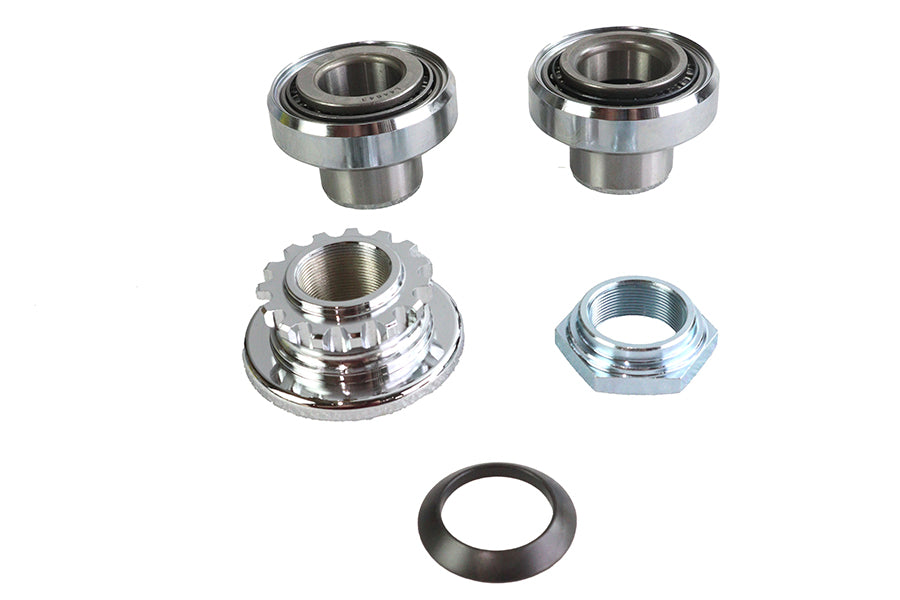

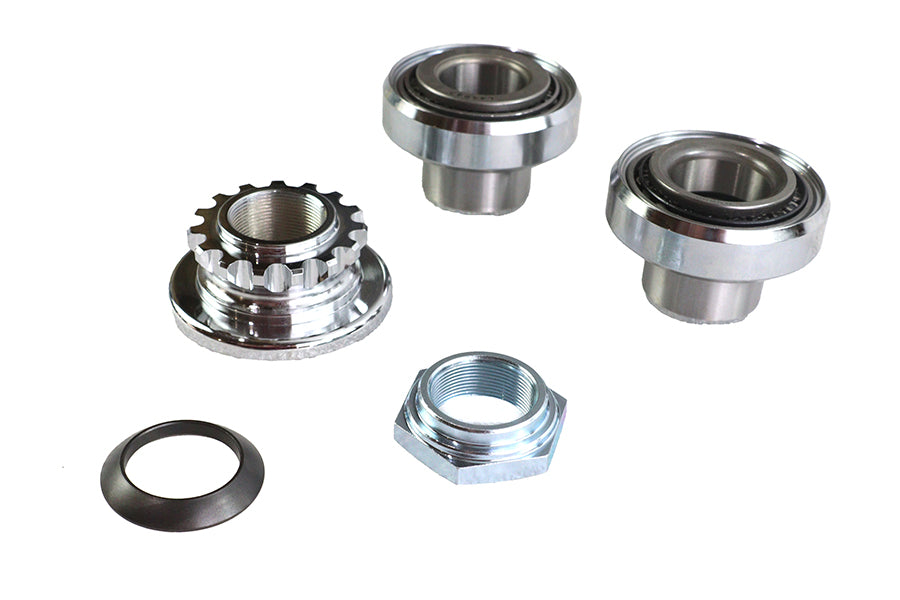

For adapting 1 inch Spring Fork for assemblies to tapered neck bearings with chrome cups to fit tapered bearings. Timken style bearings measure 1.787 inch outer diameter and 0.998 inch inner diameter. Bearing 44649 with recessed taper fits over the lower bearing guard on Big Twin Spring Forks. Kit includes chrome plated neck cups ball bearings upper and lower races and chrome top nut with dust cover pressed on.

MEASUREMENTS

• ID of 1 bearing: 1.05 inches
• ID of 2nd bearing: .998 inches
• OD of frameinsert: 5/8 inches
