40-0408 - Electric Start Oil Tank
$199.00
SKU 40-0408

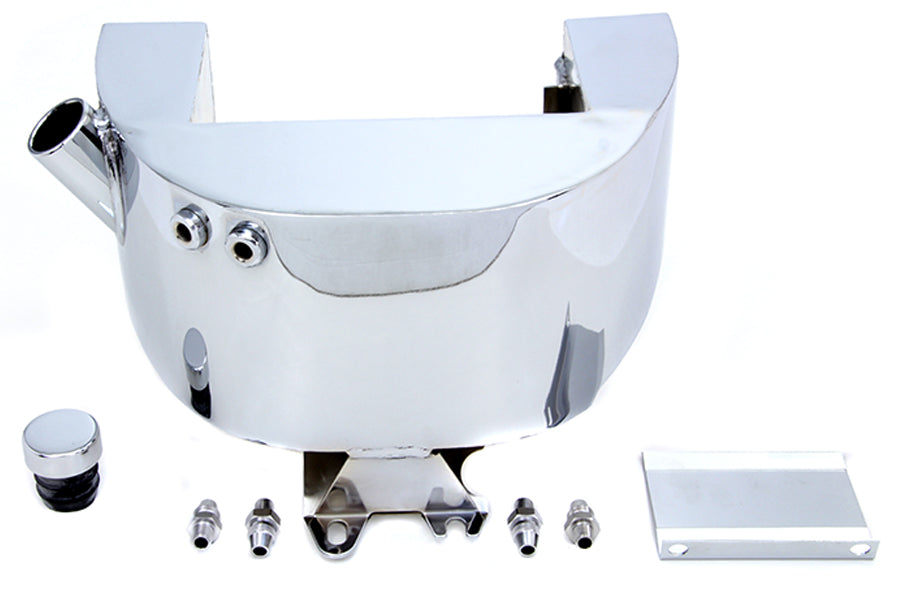

Our chrome wrap-around 4-speed oil tank is for electric start models and has a four quart capacity. It features a built in battery box. Accepts a 12 volt FXE type battery and braided or rubber lines. For use with stock rigid or swingarm frames. Threading on all of the holes is 1/8 inch-27 NPT. Installer will need to secure the rear of the tank to the fender on rigid frame installations. Tank require mount bracket on swingarm frames for installation. *NOTE: The battery box measures 7-5/8 inch x 4-1/8 inch.
FITS
- 0- Custom - application for Rigid Frames with electric start
MEASUREMENTS
- Front Height: 5-5/8 inches
- Rear Height: 4-7/8 inches
- Front Depth: 5-1/4 inches
- Back Depth: 4-5/8 inches
- Width Front: 12-1/8 inches
- Width Back: 7-5/8 inches
- Fitting Threads: 9/16 inches -24
ACCESSORIES
REPLACEMENT
- 7148-3 - Chrome Oil Line Fitting
TECHNICAL SPECIFICATIONS
- Required to use with #31-0191 Zinc Swingarm Frame Oil Tank Mount Bracket on 1958-84 FLH frames.
