40-0426 - Replica Chrome Oil Tank

$205.00 Sale Save

SKU 40-0426

Item is in stock Only 10 left in stock Item is out of stock Item is unavailable

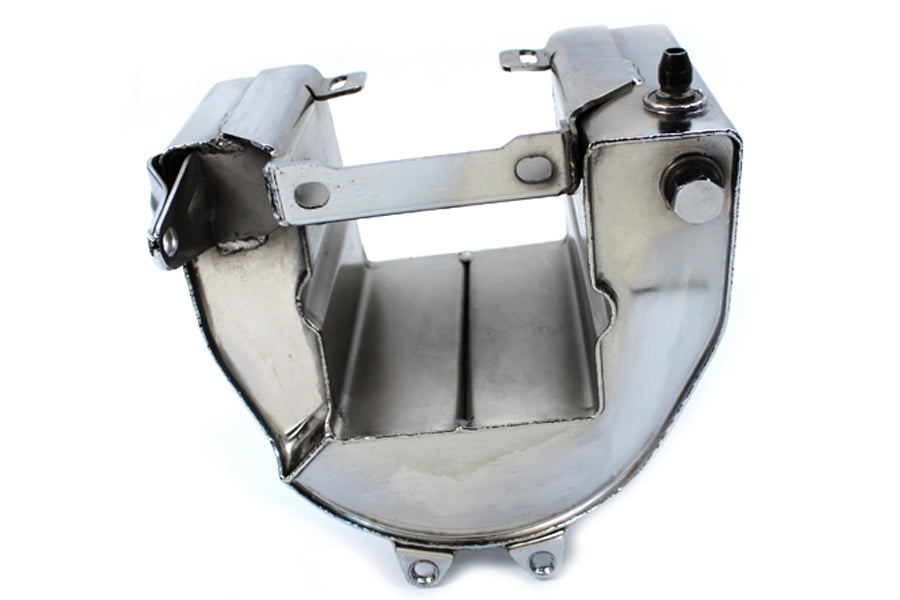

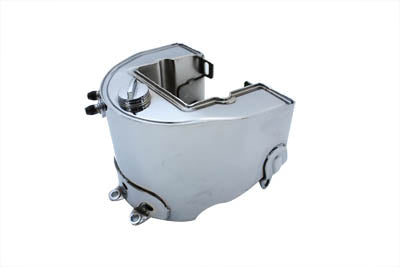

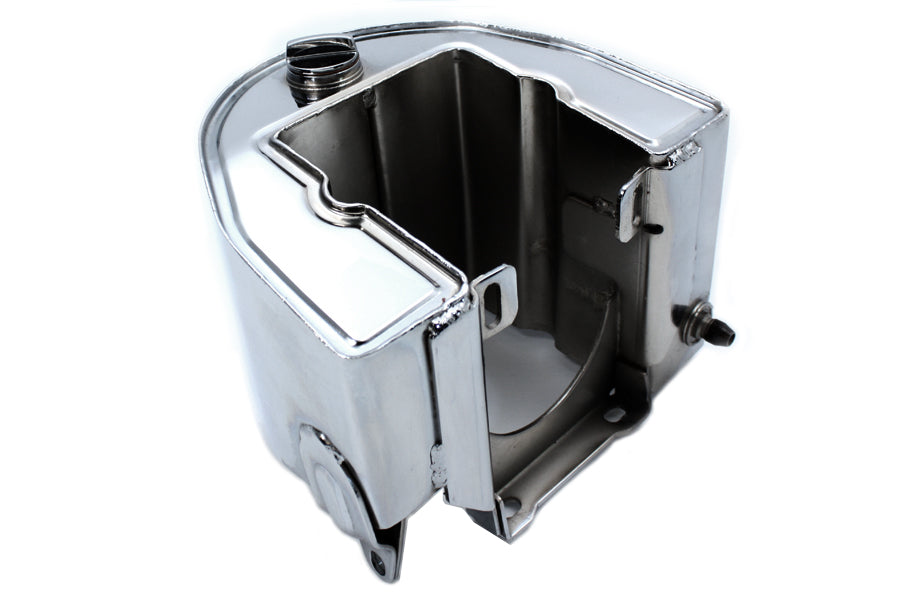

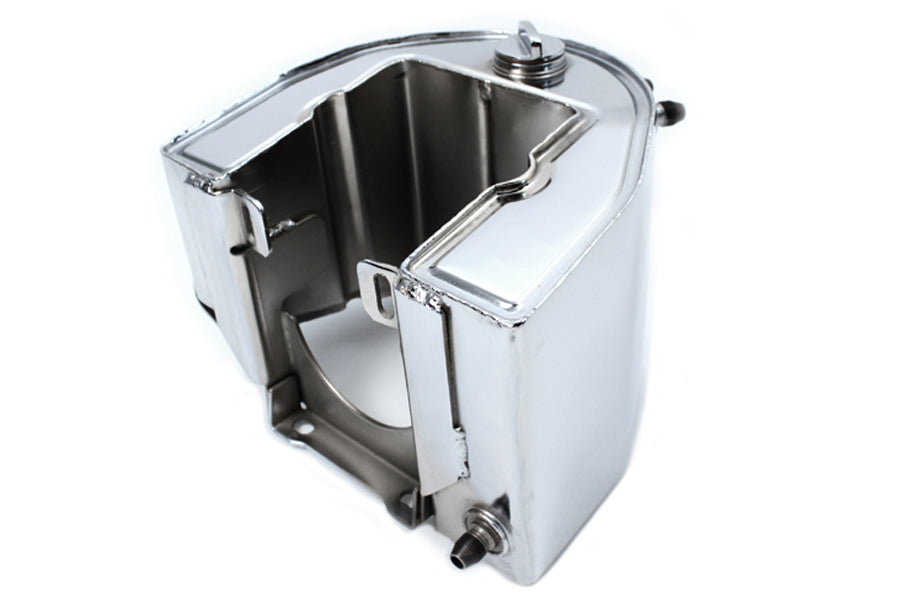

Replica chrome oil tank features wrap around type construction including seam-welded edges which show weld marks as on original tanks. Tank has screw in dipstick and two battery rod tab supports. Wrap around swingarm oil tanks holds a 6V tall H-2 style battery and has two tabs welded on to secure battery rod set. *NOTE: The battery compartment dimensions are 5 inch wide x 4-1/2 inch long x 7 inch tall.

FITS
  • 1958-1964 FL
OEM
  • 62504-58
  • MEASUREMENTS
    • Height Front: 7 inches
    • Height Rear: 6-1/2 inches
    • Depth: 8 inches
    • Depth of Battery: 5 inches
    • Width: 10 inches
    • Battery Width: 4-7/8 inches
    ACCESSORIES
    TECHNICAL SPECIFICATIONS
    • Suggested to use #8115-1 #8114-1 or #9504-1 timing plugs.
    • Suggested to use with #42-9940 battery rod set
    • Suggested to use with #2071-10 Chrome Chain Guard and Oil Tank Mount Kit.
