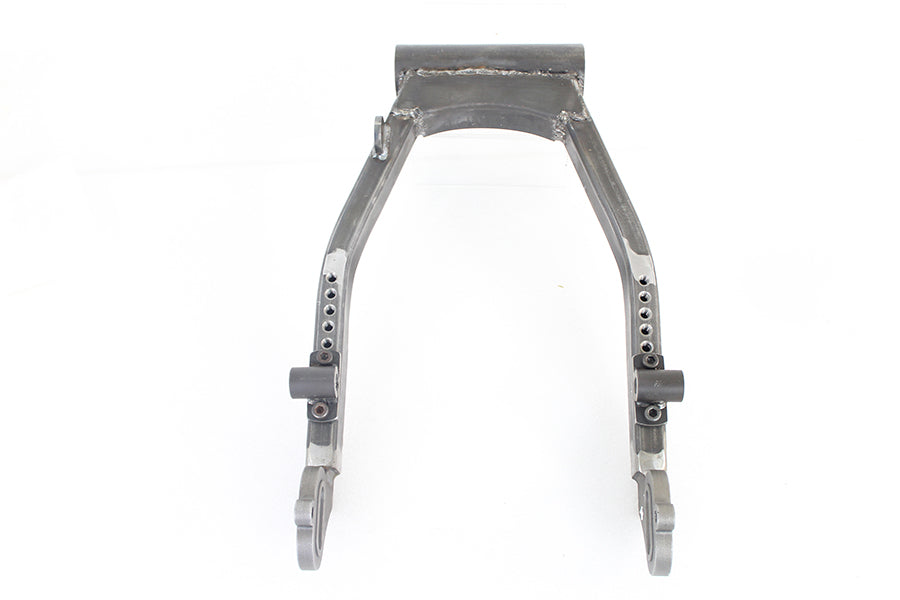

51-0783 - Dropped Swingarm Raw

Raw finish dropped swingarm features a raised up axle position so this lowers the swingarm and chassis in relation to the axle. Axle slots are 3/4 inch for disc brake applications. Swingarm is for use with 4 speed models. Lowers bike 2 inch and lengthens wheel base 1/2 inch. 140 is the widest tire that can be used. Axle lowering plates take screw type adjusters. The blocks also have tabs to mount a sissy bar or fender brace to facilitate mounting the rear fender to the swingarm for the inchfloating inch rear fender look. There are 5/16 x 18 drilled and tapped holes on the swingarm for mounting and inchfloating inch. *NOTE: Must order swingarm pivot pin assembly separately. *NOTE: Race is installed but the bearings are not included. *NOTE: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.
