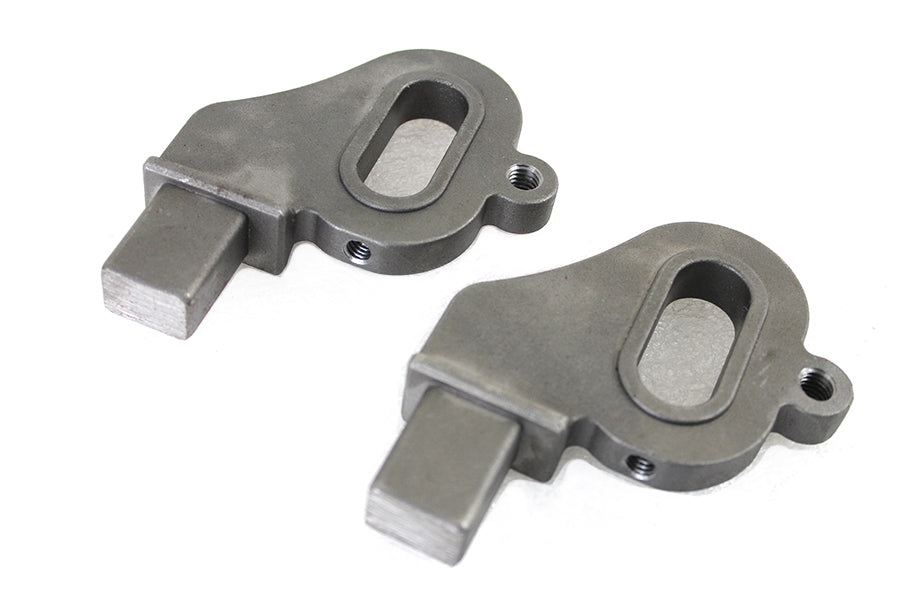

51-1322 - Lowered Rear Axle Plate Set Raw

Lowered rear axle plates are threaded 3/8 -18 for fender brace sissy bar mounting. Adjusters threaded 3/8 -24 use screws for adjusters to act as push type. Features a raw cast steel construction.
Axle mounts accept 3/4 axle mounts will need material added to fit tight into rectangular swing arm tubing. Recommended plug weld from sides as well. Use axle and spacers or 3/4 threaded rod for alignment purposes. Lowers the bike 1-1/2 . Fabricator must cut swing arm and reweld lowering axle plates in place and check fender clearance. *NOTE: Must be welded in place. Use rigid frame wheel adjusters. *NOTE: Welding and fabrication required for installation. Cut original rectangular swing arm to desired length.

Fits:
FL 1973-1984
Fx 1973-1984
XL 1979-2022

UOM: SET
Country Of Origin: TAIWAN

Accessory Items:
9629-2T - Rear Chain Adjuster Parkerized
51-0898 - Rear Frame Swingarm Black

Tech Notes: Suggested to use with #9629-2T Rear Chain Adjuster Parkerized.
