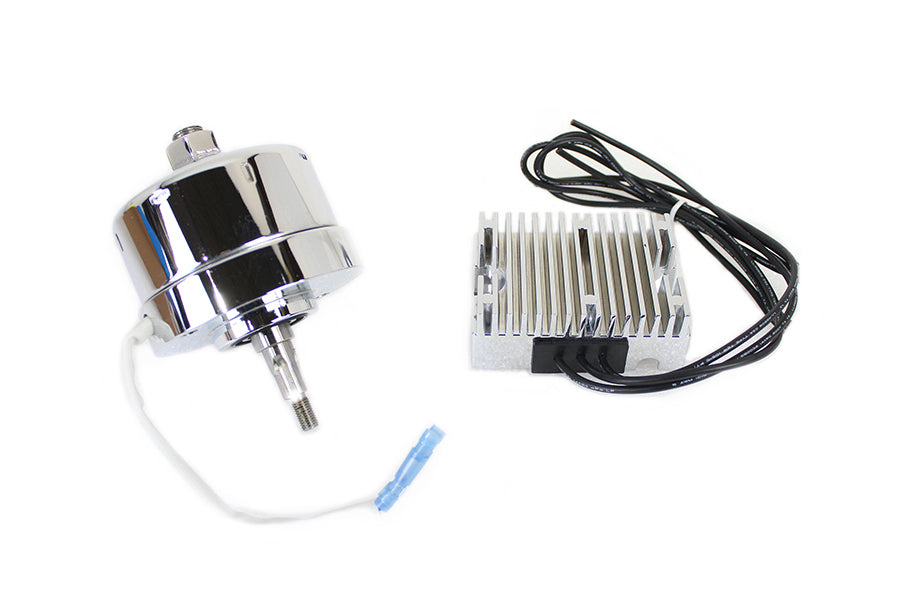

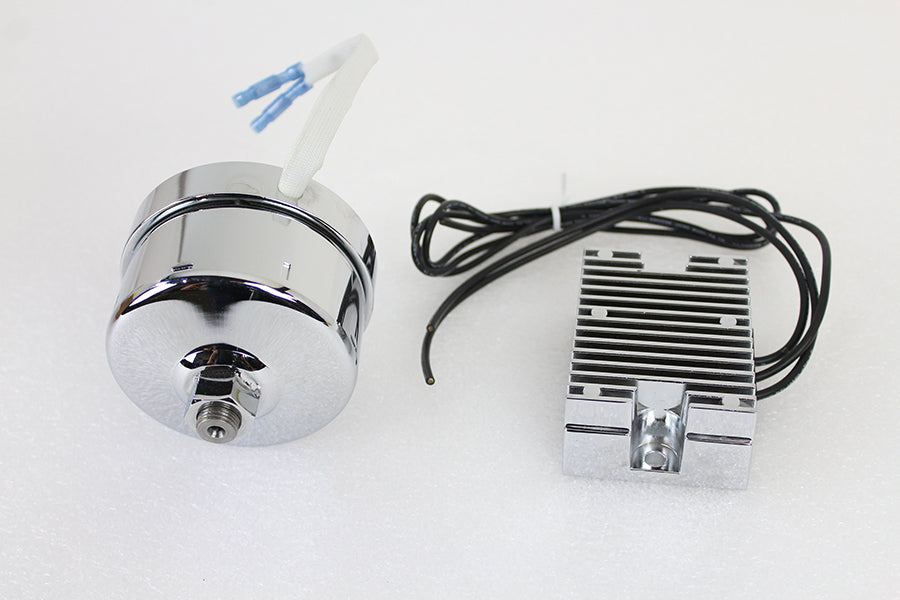

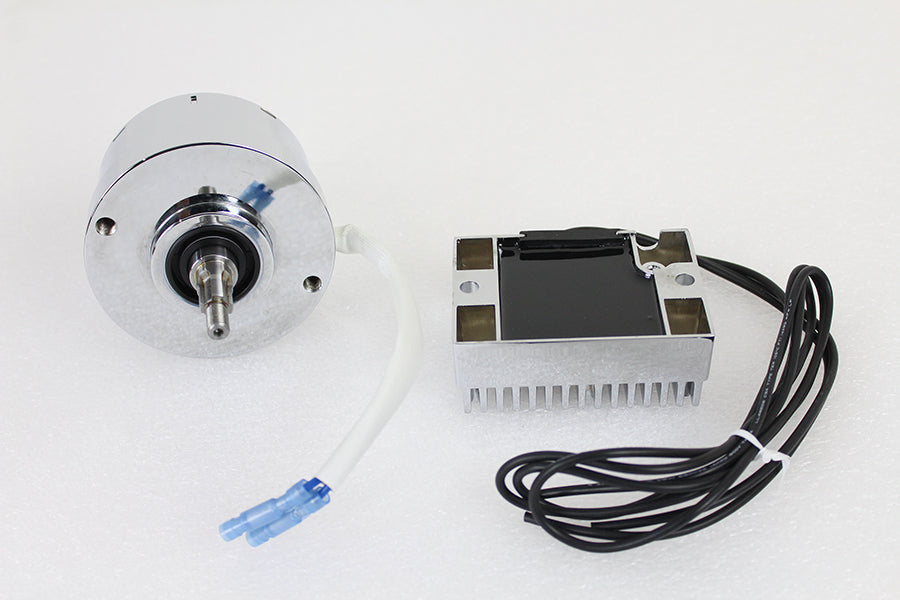

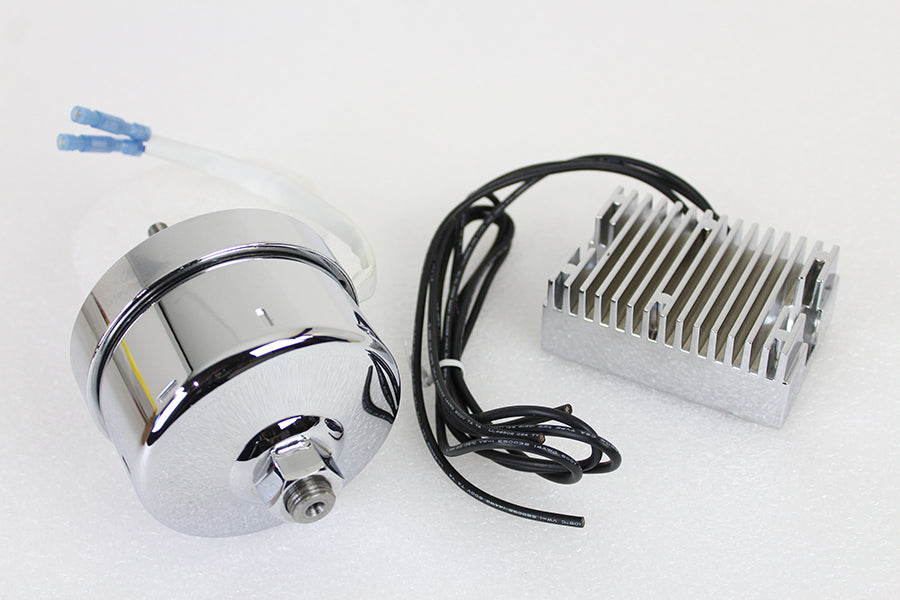

32-0372 - Chrome 17 Amp Alternator Generator Conversion Kit

Compact generator alternator conversion kit replaces original generator and regulator. The 2 short wires from the regulators go to alternator termincals long wire. Includes chrome alternator and regulator. Stronger than stock features billet housing for accurate alignment and a stress proof shaft. Alternators have 5/16 inch x 24 mount holes for screws. 13T drive gears are for all Big Twins and 14T is for all Sportsters! Kit can be used on 1957-1983 XL and 1941-1969 FL models if the generator bolt holes in cases are drilled to 5/16 inch-24. Use HeliCoil kit to convert 12 volt generators with 5/16-24 thread to 1/4-24 thread to accept early mount bolt set. *NOTE: It is recommended that holes on pre-1958 FL and G models be enlarged to 5/16 inch to accep the larger screws. As the 2-brush type generators and the 32E alternators do not use a strap. *NOTE: Black finned Regulator is not built-in and must be mounted remotely. Cannot be used with mini battery (12N55A-3B). *NOTE: Order mount screws gasket and gear kit for specific application. *NOTE: The outer cover with the large hex nut houses the rotor magnets which are encase in a stainless steel shell. This inchrotor inch turns when the engine is running.

MEASUREMENTS

• Length: 3-1/4 inches
• Weight: 3 lbs.
