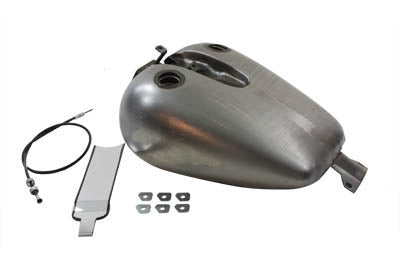

38-0116 - Bobbed 4.0 Gallon Gas Tank

Raw gas tank has a left side petcock location and has a fuel capacity of 4.0 gallons. Tank has a dash cutout and will bolt on with original hardware. Accepts GPS speedometer and tachometer dash kit Requires purchase of complete dash kit. Check the tank for flaws or fit before painting. Do not grind or sand the seams or joints. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to help stop leaks and prevent corrosion. Check petcock opening making sure the petcock can be easily installed. Petcock fitting should be masked or plugged during painting for easy installation of petcock. Order FXS dash panel kits available separately. Panels will accept 3 inch gauges. *NOTE: May be updated to FXR type dash panel with purchase of dash bracket must be aligned and welded in place. **Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.

MEASUREMENTS

• Top Length: 18-1/2 inches
• Bottom Length: 16 inches
• Rear Width: 9 inches
• Front Width: 13-1/2 inches
• Rear Height: 4 inches
• Front Height: 9 inches
• Front Tunnel Height: 7 inches
• Rear Tunnel Height: 1-1/2 inches
• Tunnel Length: 20 inches
• Front Tunnel Width: 4-5/16 inches
• Rear Tunnel Width: 3-1/2 inches
