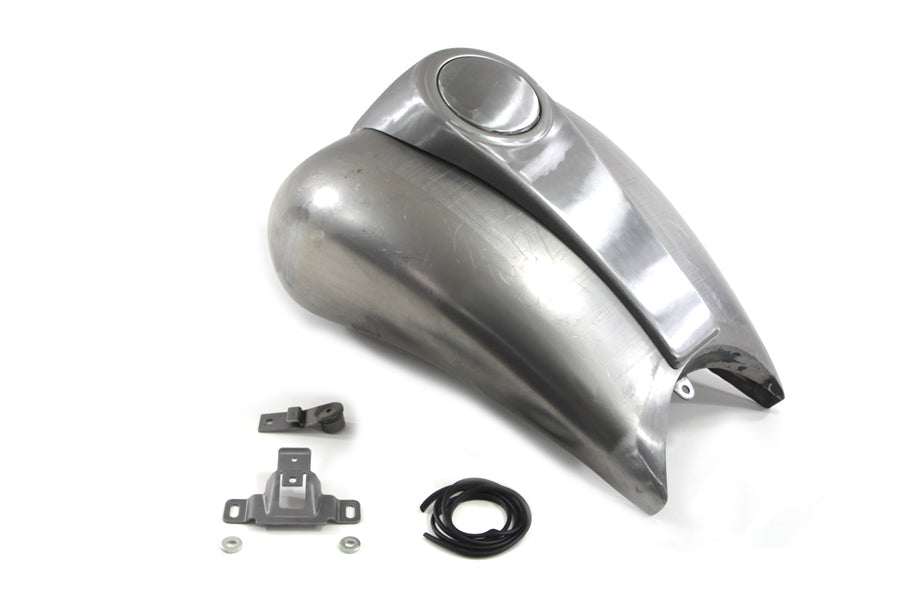

One piece gas tank with 7.0 gallon fuel capacity for Touring models. Stretch style with steel construction.
Features curved bottom and dash. Includes hardware and rear mounting brackets. The use of the stock tank filler assembly is required. Requires a custom seat to be fitted and accepts the stock OEM fuel pumps. When re-installing the fuel injection pump check for clearance between the pump and tank bottom. The internal bracket tabs may have to be removed if more clearance for the pump installation is required. **NOTE: Check the tank for flaws and fit before painting. Do not grind or sand the seams or joints. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to help stop leaks and prevent corrosion. *Note: UPS may consider this part as packaged oversize for shipment as compared to the actual weight which will result in higher shipping costs.
Fits:
FLT 2003-2007
UOM: EA
Country Of Origin: TAIWAN
Accessory Items:
38-0442 - Black Fuel Tank Console Door
33-1008 - 7 LED Headlamp Assembly by Wyatt Gatling
16-1977 - Fork Stem Nut Wrench
Tech Notes: Suggested to use #39-0221 chrome dash extension panel if needed for FLT models with shorter seat to cover exposed frame.
Measurement: Length: 25 inches
One piece gas tank with 7.0 gallon fuel capacity for Touring models. Stretch style with steel construction.
Features curved bottom and dash. Includes hardware and rear mounting brackets. The use of the stock tank filler assembly is required. Requires a custom seat to be fitted and accepts the stock OEM fuel pumps. When re-installing the fuel injection pump check for clearance between the pump and tank bottom. The internal bracket tabs may have to be removed if more clearance for the pump installation is required. **NOTE: Check the tank for flaws and fit before painting. Do not grind or sand the seams or joints. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem
