49-1104 - VL Spring Fork Top Triple Tree White Zinc

$109.00 Sale • Save

SKU 49-1104

Item is in stock Only 10 left in stock Item is out of stock Item is unavailable

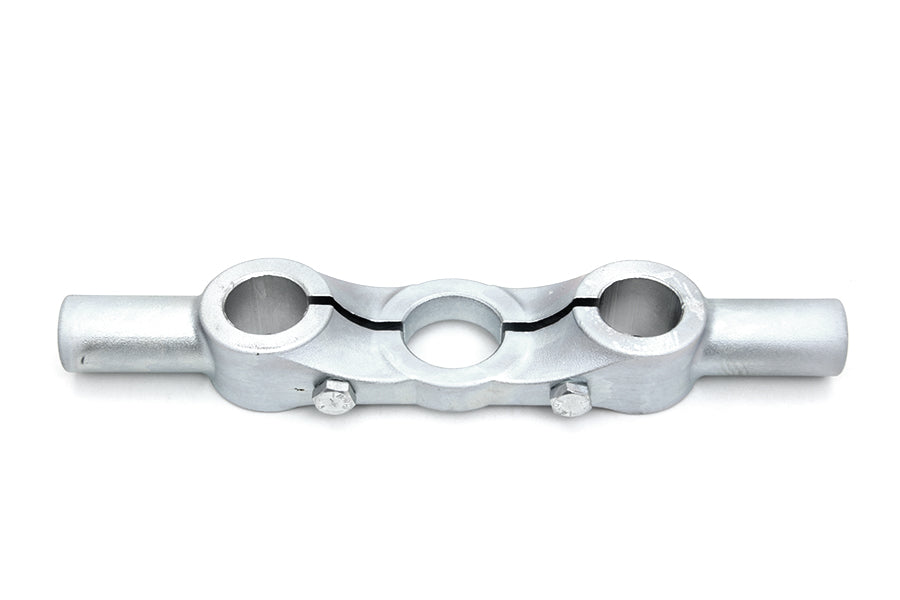

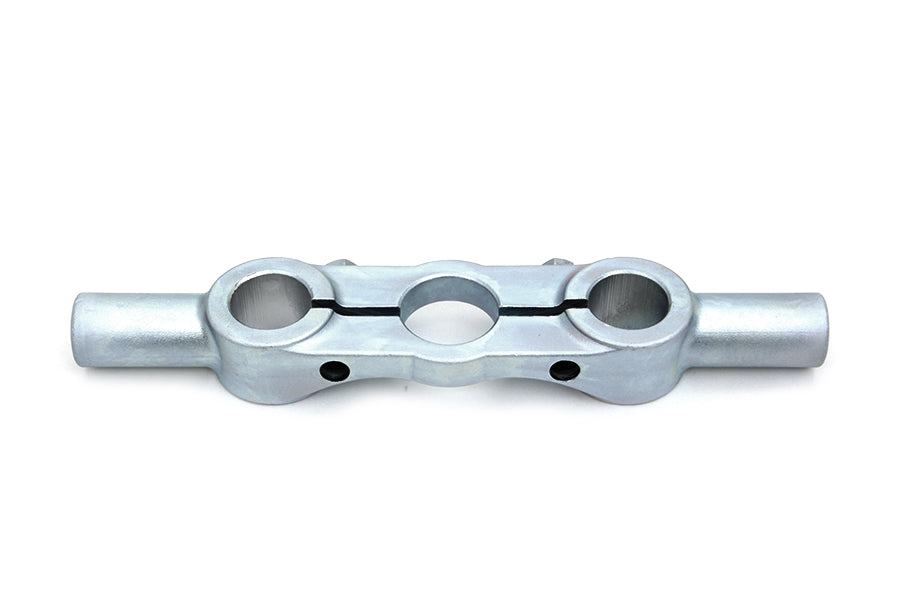

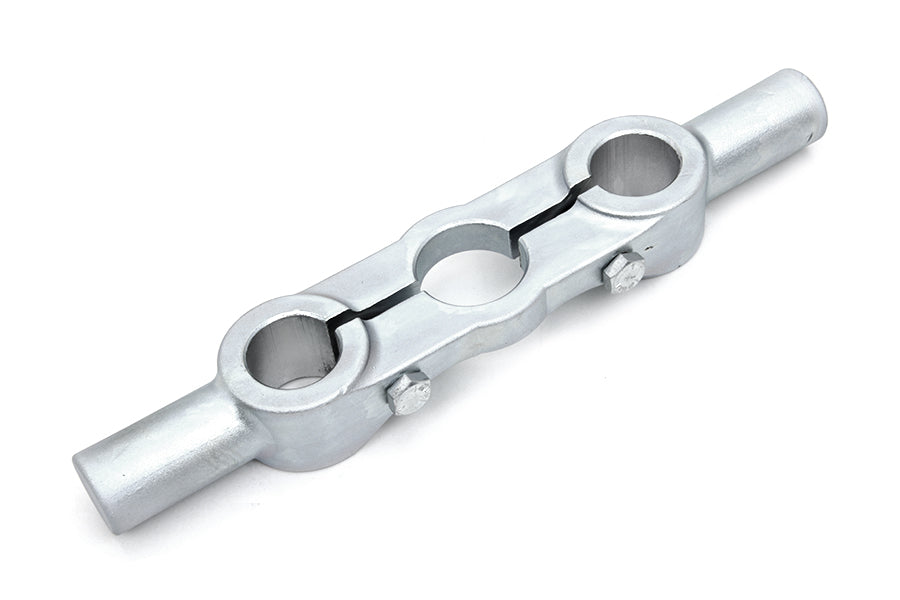

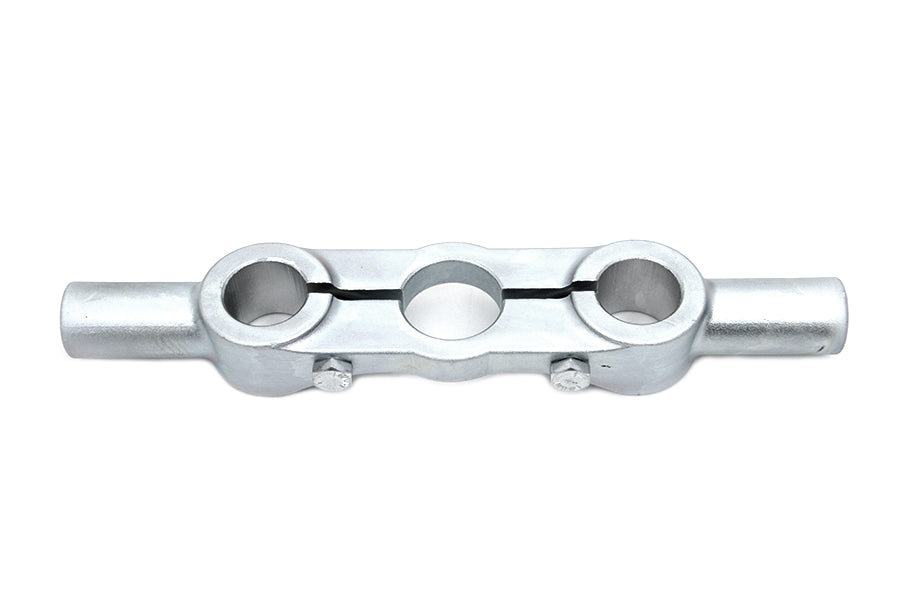

Spring Fork Inline top triple tree with ears features cast steel construction with white zinc finish. Exact replica of the Original VL design. Accepts dog bone or flanders risers with 1 inch outer diameter ears. Inner diameter of holes for mounting on 1936-1957 Spring Forks must be honed out to 1.05 inch in order to fit most Spring Forks. The length from one side of the center hole to the other center hole measures 2-1/2 inch. Is designed to fit VL & RL spring fork 1930-1936 and 1936-1957 inline Big Twin and 1945 spring fork. *NOTE: Designed for 1930-36 VL + RL inchI inch beam type forks but will work on later models with modification.

FITS
  • 1930-1936 VL
  • 1936-1945 EL
  • 1941-1945 FL

MEASUREMENTS
  • Center to Center: 4-3/4 inches
ACCESSORIES
  • 49-1868 - VL 1 inch Spring Fork Assembly Black
  • 49-0504 - VL Flanders Style Riser Kit
  • 24-1569 - VL Fork Bearing Kit
  • 49-0619 - VL Fork Neck Spacer Raw
