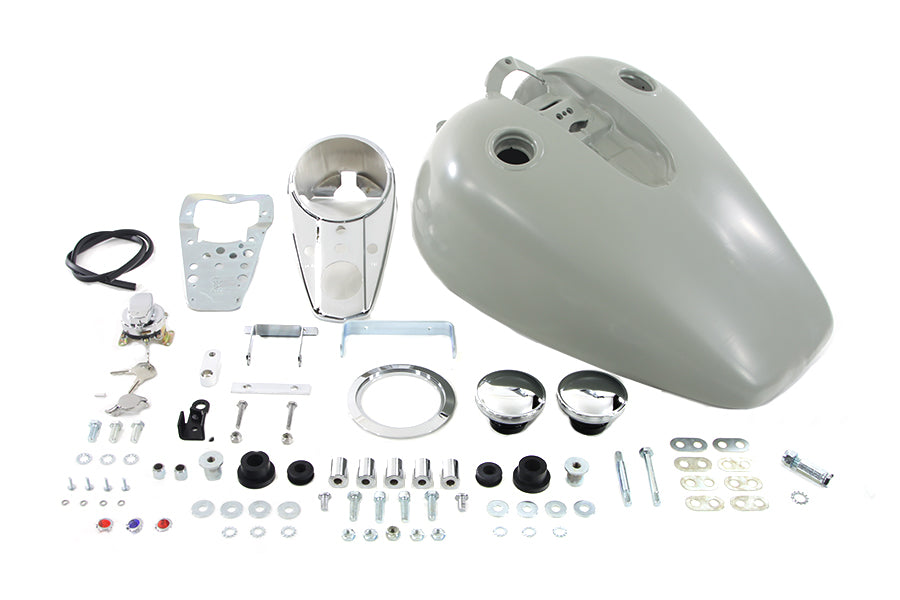

38-0067 - Bobbed 3.2 Gallon Gas Tank Kit

Gas tank is dual cap style and has a left side petcock location. Fuel capacity is 3.2 gallons. *NOTE: Not primered for photo purposes only. Kit has a one piece tank that will bolt to existing mounting holes. Includes three light dash cover kit coil relocation kit gas cap set and speedometer adapter ring that will allow use of stock speedometer in dash. Order speedometer separately. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. Please test fitment before painting. Tank weld seams may require filler to meet your individual requirements. Do not grind or sand the seams as theis may cause leaks. We suggest using Kreem gas tank combo kit to clean condition and seal. This will help to stop leaks and prevent corrosion. Check petcock openging making sure the petcock can be easily installed. Petcock fitting should be masked or plugged during painting for easy installation of petcock. Do not grind or sand the seams or joints. **NOTE: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.

MEASUREMENTS

• Top Length: 18-1/2 inches
• Bottom Length: 16-1/2 inches
• Rear Width: 7 inches
• Front Width: 13-1/2 inches
• Rear Height: 2 inches
• Front Height: 8-1/2 inches
• Front Tunnel Height: 8 inches
• rear Tunnel Height: 2 inches
• Tunnel Length: 17 inches
