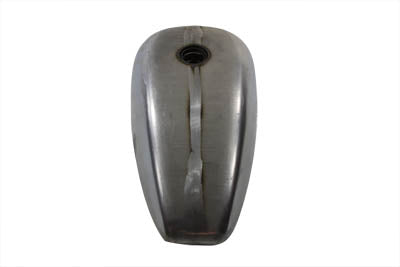

38-0132 - King 3.2 Gallon Gas Tank

Gas tank is one piece with a left side petcock location and a fuel capacity of 3.2 gallons. King tank features an updated shape that rolls the bottom edge under to give flowing lines while still retaining the classic shape. Order gas cap separately. Check the tank for flaws or fit before painting. Do not grind or sand the seams or joints. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to help stop leaks and prevent corrosion. Check the petcock opening making sure the petcoc k can be easily installed. Petcock fitting should be masked or plugged during painting for easy installation of petcock. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.

MEASUREMENTS

• Top Length: 18-1/2 inches
• Bottom Length: 18-1/2 inches
• Rear Width: 8-1/2 inches
• Front Width: 14 inches
• Rear Height: 3 inches
• Front Height: 8-1/2 inches
• Front Tunnel Height: 4-1/2 inches
• Rear Tunnel Height: 1 inches
• Tunnel Length: 19-3/4 inches
