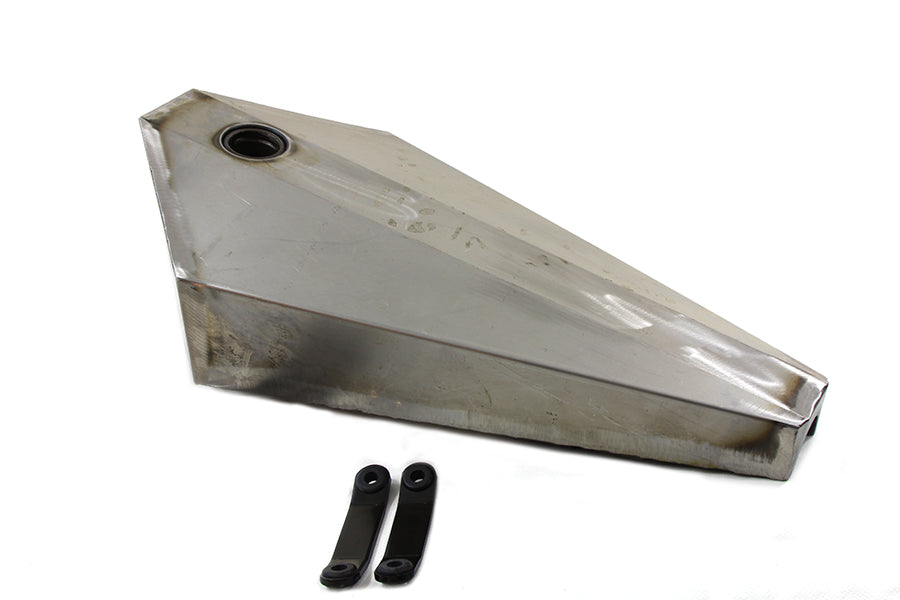

38-0199 - Koffin Style 3.4 Gallon Gas Tank

Gas tank accepts a left side petcock with a 3/8 inch National Pipe Thread. Fuel capacity is 3.4 gallons. Tank features ISO mount strap system. *NOTE:Includes 2 black brackets and bolts. Check the tank for flaws and fit before painting. Do not grind or sand the seams or joints. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to help stop leaks and prevent corrosion. Check petcock opening making sure the petcock can be easily installed. The petcock fitting should be masked or plugged during painting for easy installation of the petcock. Tank features a second petcock hole that can utilize 1/4 NPT similar to a mini petcock 90. *NOTE: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.

MEASUREMENTS

• Top Length: 25.5 inches
• Bottom Length: 20 inches
• Rear Width: 3 inches
• Front Width: 12 inches
• Rear Height: 2.5 inches
• Front Height: 6 inches
• Front Tunnel Height: 4 inches
• Rear Tunnel Height: 1 inches
• Tunnel Length: 24 inches
• Tunnel Width: 2-1/4 inches
• Mount Hole: 4.45 inches CTC
