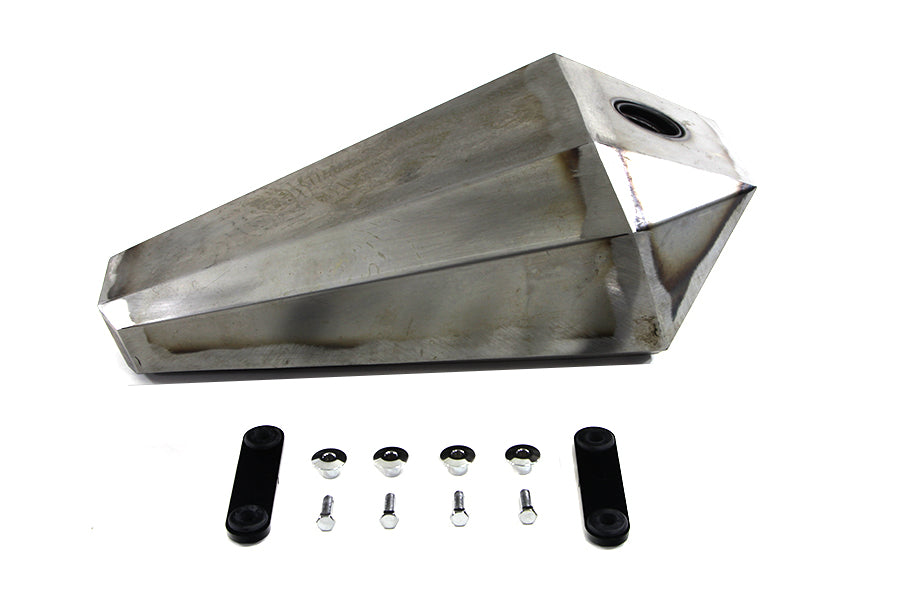

38-0197 - Chopper Prism 2.2 Gallon Gas Tank

Gas tank has a 9/16 inch-18 left side petcock opening and a fuel capacity of 2.2 gallons. It features four bolt mounting with a strap type mounting system included. Check the tank for flaws and fit before painting. Do not grind or sand the seams or joints. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to help stop leaks and prevent corrosion. Check petcock opening making sure the petcock can be easily installed. The petcock fitting should be masked or plugged during painting for easy installation of the petcock. The strap included measures 3-5/8 inch center to center. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.

MEASUREMENTS

• Top Length: 20 inches
• Bottom Length: 16-3/4 inches
• Rear Width: 5-1/2 inches
• Front Width: 11-1/2 inches
• Rear Height: 2-1/2 inches
• Front Height: 7-9/16 inches
• Front Tunnel Height: 3-7/8 inches
• Rear Tunnel Height: 1 inches
• Tunnel Length: 19 inches
