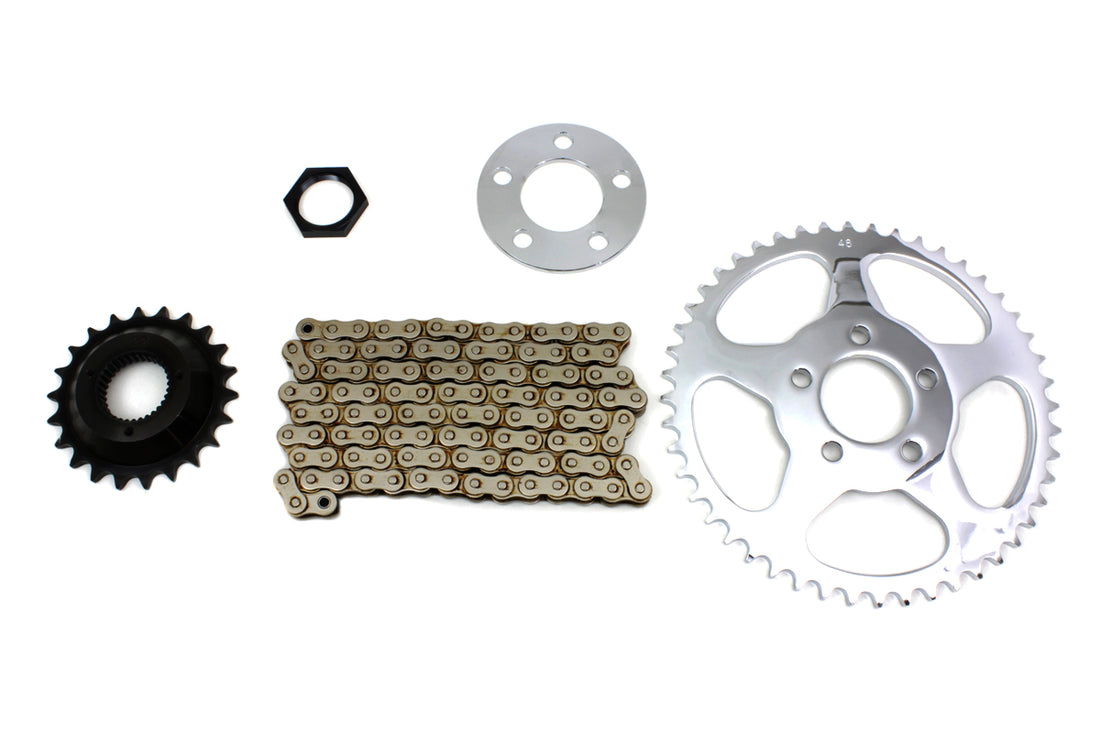

19-0456 - XL Rear Chain Drive Kit
SKU19-0456
Transmission sprocket conversion kit is used to convert belt drive models to chain drive.
Kit features a 108 link chain (67.5 ) and 2.1:1 ratio belt. Includes 22 tooth front sprocket and 48 tooth rear sprocket exact as stock with special nut to accept sprocket. Kit will fit 1991-1999 XL models. Spacers for both applications are included use correct spacer for specific year. See listing in the 1991-UP XL chain drive conversion chart for sprocket tooth count and offset. Small countershaft procket will have lower tooth count large countershaft sprocket will be higher. Front sprocket lists 12.7mm offset rear lists 9.8mm offset. Use the 1/16 shown on rear as listed for correct year.
Fits:
XL 1991-1999
UOM: KIT
Country Of Origin: TAIWAN
Suggested Items:
19-0725 - Nickel Plated Chain 120 Link
19-0164 - Transmission Sprocket 22 Tooth
19-0672 - Rear Sprocket Chrome 48 Tooth
20-0324 - Transmission Drive Sprocket Nut
Accessory Items:
19-0122 - Transmission Sprocket 24 Tooth
19-0218 - Rear Sprocket Chrome 48 Tooth
18-3684 - Chain Tensioner
Tech Notes: Suggested to use with #20-0215 Pulley Indexing Flange Nut.
