35-0286 - WR Linkert Intake Manifold by V-Twin

V-Twin

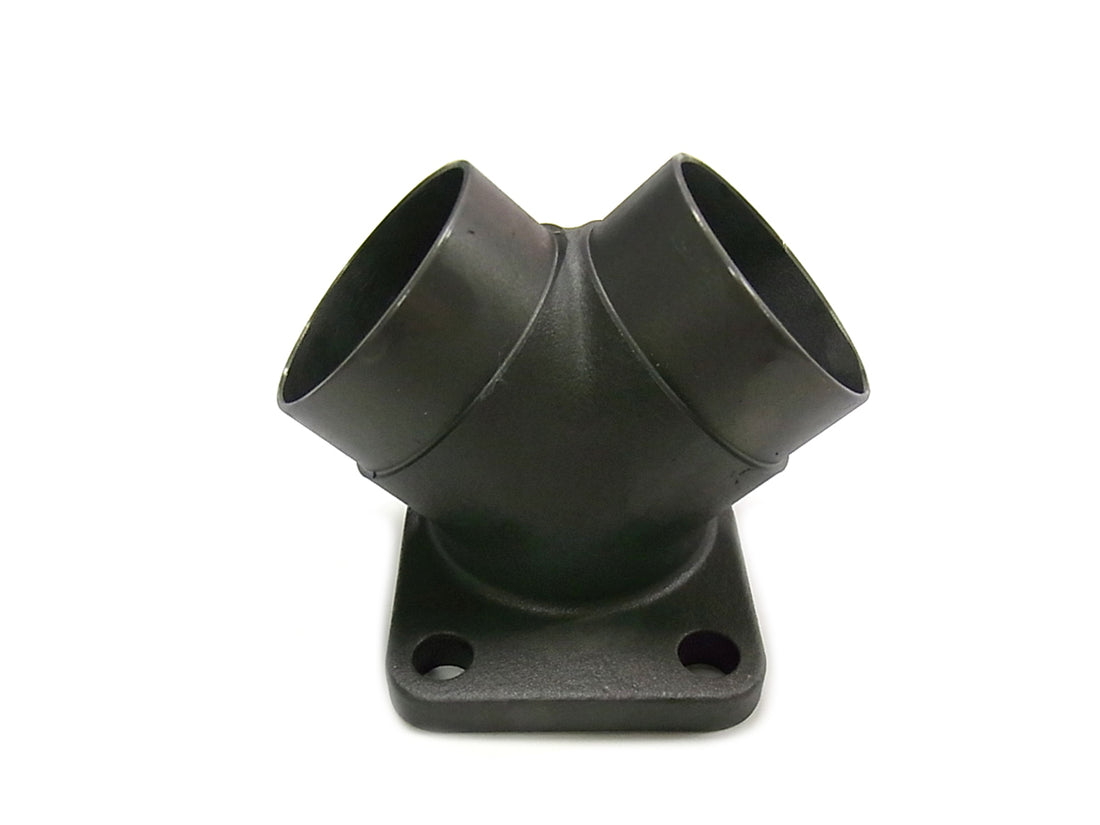

35-0286 - WR Linkert Intake Manifold

$125.00 Sale • Save

SKU 35-0286

Item is in stock Only 10 left in stock Item is out of stock Item is unavailable

Four bolt WR intake manifold for Linkert carburetor is cast iron with zinc plating. NOTE: For WR and K use order correct manifold nuts and seals separately. Installation requires the nipples to be screwed into the cylinder depth so that the manifold alignment is correct. For the float arm installation the center prong of the float arm should have .003 inch of clearance in order for the arm and needle to move freely.

FITS
  • 1941-1952 WR
  • 1952-1956 K
  • 1954-1956 KH
OEM
  • 27020-40

    • MEASUREMENTS
    • Intake Bore I.D.: 1-9/16 inches
    ACCESSORIES
    • 35-0882 - Replica Petcock Nickel Plated
    • 35-0937 - WR Conversion Intake Manifold Kit
    REPLACEMENT
    • 7104-2 - Brass Intake Manifold Seals
    • 9664-8 - Parkerized Linkert Carburetor Mount Screws
    TECHNICAL SPECIFICATIONS
    • Suggested to use with #35-1707 Manifold Nipple Set
    • Suggested to use with #35-1952 Intake Manifold Nut Set.
    • To install the WR manifold on a 45inch cylinder on W and G models the intake manifold nipples must be replaced with #9423-1 larger nipples.
