45-0783
45-0783 - Stainless Steel 18 Spoke Set by V-Twin

V-Twin

45-0783 - Stainless Steel 18 Spoke Set

$205.00 Sale • Save

SKU 45-0783

Item is in stock Only 10 left in stock Item is out of stock Item is unavailable

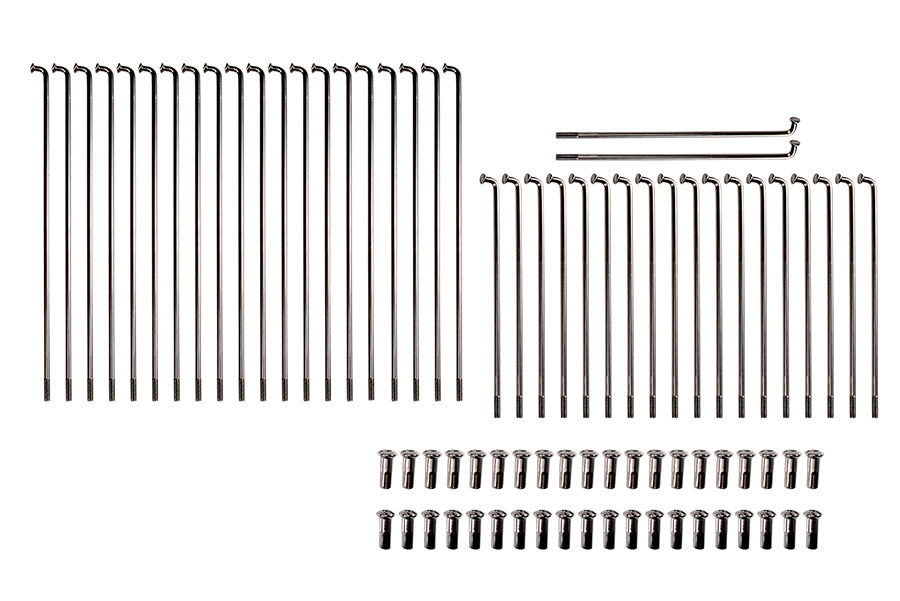

Stainless Steel spoke set for stock OE spoke pattern lacing. Kit includes 40 spoke nipples. 9 gauge diameter single stage spokes feature a natural finish and two sizes 21.5mm and 15.5 mm. Cross four on drum side and two on small hub diameter end. Nipples are stainless steel. *NOTE: We suggest using 22mm long nipples when lacing 45 Front drum wheels. *NOTE: If required longer nipples are available separately.

FITS
  • 1936-1952 WL

MEASUREMENTS
  • Short Spoke Length: 6 inches
  • Long Spoke Length: 8-3/8 inches
  • Diameter: 3.5mm
  • Nipple Length: 19.50mm
ACCESSORIES
  • 52-0758 - 18 inch x 2.15 inch Front Wheel Assembly
  • 52-0785 - 18 inch x 2.15 inch Rolled Edge Rim Black
  • 45-0770 - Zinc Plated 18 inch Spoke Set
REPLACEMENT
  • 45-0697 - Stainless Steel 18 inch Spoke Set
TECHNICAL SPECIFICATIONS
  • Required to use with #45-0922 40 Piece Spoke Nipple Set Stainless Steel if longer nipples are needed.
  • Suggested to use with #45-0927 Spoke 40 Piece Stainless Steel Nipple Set.
