35-0980 - Sifton L Series Carburetor Float Bowl Assembly

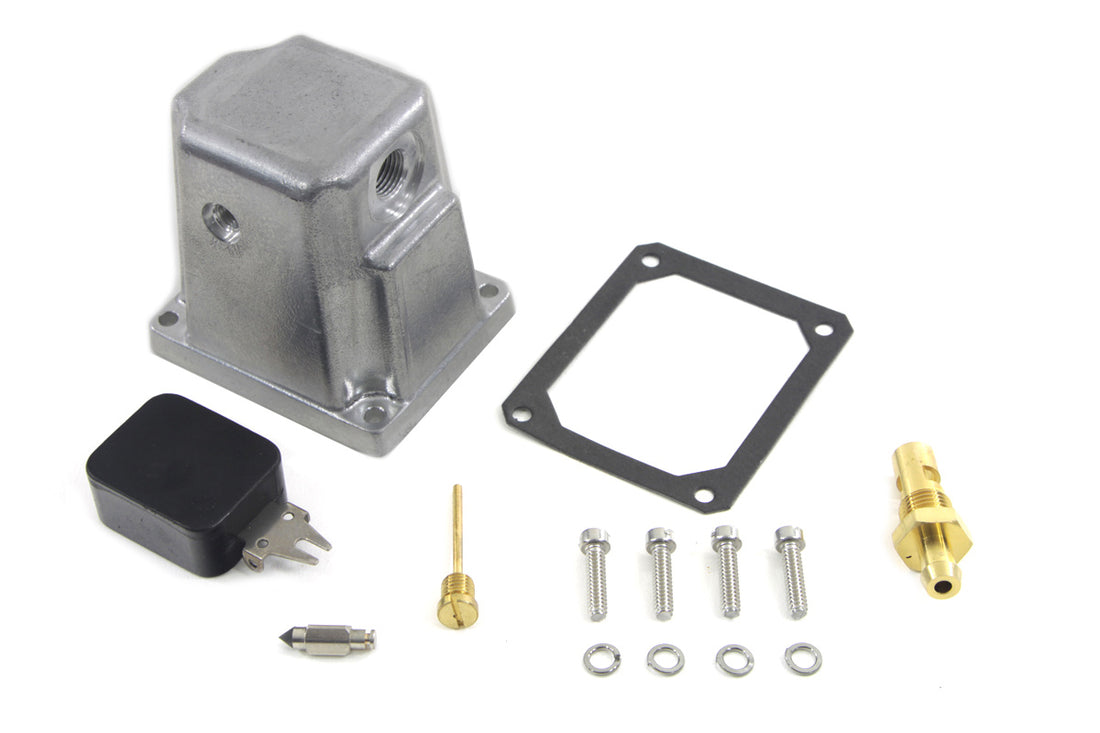

Carburetor float bowl assembly includes float needle and seat pivot pin with arm float gasket and brass plug with gasket to fit all L series S&S carburetors 1-7/8 GAL 1-3/4 GBL.
Sifton carburetor bowl is a replacement for the 1972-1975 style float bowl. Fuel is top feed float is Nitrophyl with forged arm. Needle seat fuel fitting gasket and screws included. The gasket measures 3-1/16 x 9/16 . NOTE: Built-in choke mechanism. Intermediate jet goesthrough venturi from top of carburetor down into main discharge tube. Changeable intermediate air bleed screws into boss adjacent to intermediate jet on top of carburetor side mounted float bowl. Air cleaner mounting pattern same as stock Tillotson Bendix Keihin butterfly type carburetors.

UOM: EA
Country Of Origin: TAIWAN

Accessory Items:
35-1673 - L Series Carburetor Choke Door Assembly
35-1280 - L Series Replica Carburetor Assembly
35-0659 - L Series Carburetor Master Rebuild Kit

Tech Notes: Suggested to use with #35-0762 Float Bowl Mount.
