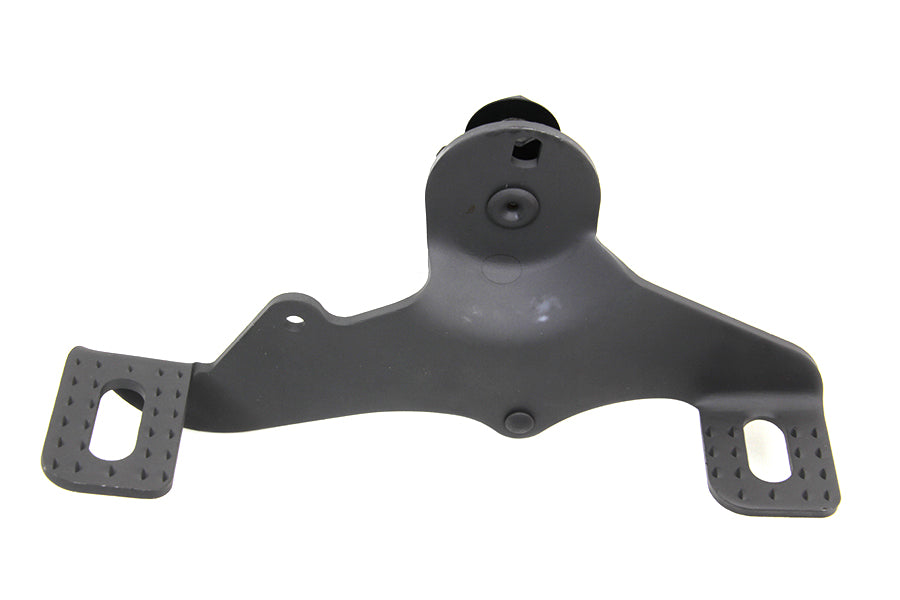

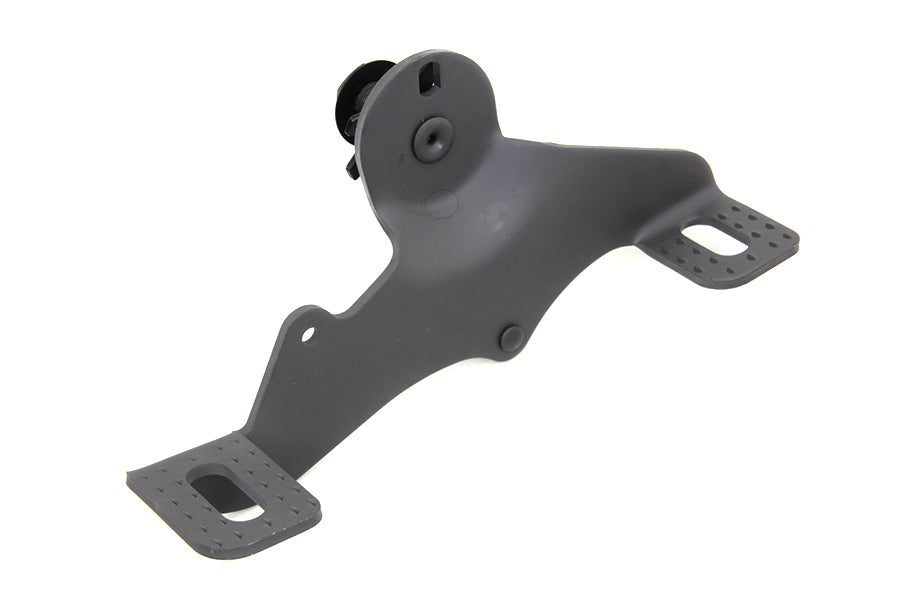

49-0471 - Rocker Clutch Pedal Parkerized

Early style rocker clutch pedal is parkerized as original and includes all components shown.
This Rocker Clutch Pedal replica is not exact but is very close in shape and authenticity to the original as used on 1936-37 EL and 1937 UL models. This pedal has a distinctive shape and configuration. The center of the clutch rod stud hole is approximately 5/16 from the lower edge. The heel pad bends outwardfrom the lower edge and the top edge between the toe pad and spring hole features a sharp incline above and around the hole. The pedal does not have the dog leg bend found on later models. The overall length and position of therod stud will fit for Big Twin application. This pedal may be altered to be exact as original if desired for the 100 point look! Some material can be removed to achieve this exact shape. Bracket may be required available separately.

Fits:
EL 1936-1938
U 1936-1938

UOM: EA
Country Of Origin: TAIWAN
OEM Cross Reference: 2409-36A

Suggested Items:
49-1923 - Finned Pedal Pad 3 Piece Set
28-0986 - Clutch and Brake Pad Set

Accessory Items:
18-0575 - Cadmium Plated Clutch Release Rod
22-1675 - Rocker Clutch Assembly
49-1519 - Jockey Rocker Clutch Kit
49-0472 - Rocker Clutch Bracket Parkerized
22-0997 - Rocker Clutch Pedal Assembly

Measurement: Pivot Shaft Length: 1-7/16 inches
