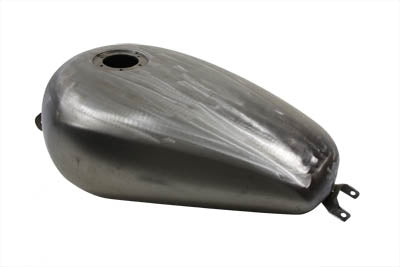

38-0885 - Replica Roadster 3.5 Gallon Gas Tank

Replica gas tank features an aircraft filler neck and has a left side petcock opening. The tank has a fuel capacity of 3.5 gallons and is for carburetor type models. Order aircraft cap separately. Check the tank for flaws and fit before painting. The tank requires sanding and primer before painting. Do not grind or sand the seams or joints. Check the petcock opening making sure the petcock can be easily installed. The petcock fitting should be masked or plugged during painting for easy installation of the petcock. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to help stop leaks and prevent corrosion. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.

MEASUREMENTS

• Top Length: 20-1/2 inches
• Bottom Length: 19-3/4 inches
• Rear Width: 7-3/4 inches
• Front Width: 11-1/2 inches
• Rear Height: 2 inches
• Front Height: 7-1/4 inches
• Front Tunnel Height: 5 inches
• Rear Tunnel Height: 1 inches
• Tunnel Length: 21-3/4 inches
