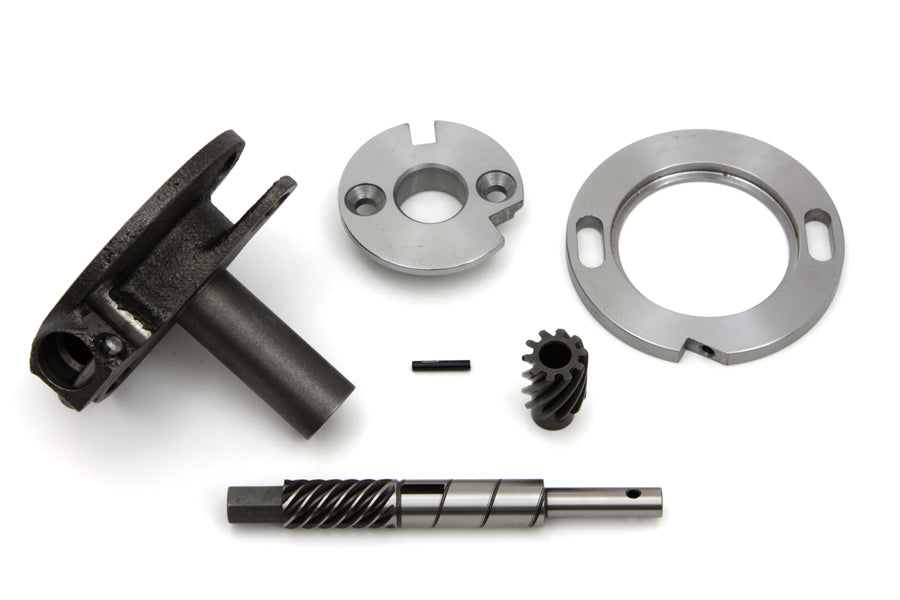

32-1346 - Replica Magneto Driveshaft Assembly

Replica magneto driveshaft assembly comes assembled with hex top gear and cast iron base with raw finish. Cast iron base with pre-installed bushings features a raw unplated finish.Pieces can be cadium or zinc.Drive ring and center hub are zinc plated. Assembly includes spiral to drive tachometer as original. Drive gear must be installed with a drive gear pin when installing the pin press in and grind off excess length. Base will also accept a hex drive magneto unit cable driven gear and 34-1/4 inch tachometer cable. Tachometer drive gear and cable available separately. Order magneto head separately. This is the real deal Sportster advance mechanism as the factory supplied from 1965-1970 on the XLCH models Get Real! All components as original.
