Replica Knucklehead Cam Cover
Replica Knucklehead Cam Cover
Replica Knucklehead Cam Cover
Replica Knucklehead Cam Cover
Replica Knucklehead Cam Cover
Replica Knucklehead Cam Cover

Replica Knucklehead Cam Cover

$352.00 Sale Save

Item is in stock Only 10 left in stock Item is out of stock Item is unavailable

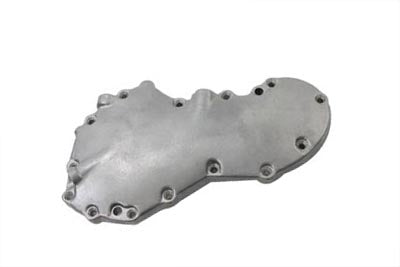

Replica cam cover includes bushings and breather pipe with smooth natural finish. This OEM Replica is cast with exclusive V-Twin molds and tooling.
Cam cover is exact Replica for 1937-1940 EL models smooth type! Cam cover bushing smust be checked and fitted (reamed) for final assembly. Check end play as well. Make sure oil passages and oil feed holes in bushings are clear. Tapered screw holes may require a deeper counter sink check with screw head before installation. The oil line fitting measures 2/8 x 28. *NOTE: Check oil passage (drilled hole) into bronze bushings either on existing bushings or when replacing bushings. Generator holes for 32E 6 volt 2 brush generators are 1/4 on Pre-1957 models and 5/16 on 1958-1969 models.

Fits:
EL 1937-1940
FL 1941-1947

UOM: EA
Country Of Origin: TAIWAN
OEM Cross Reference: 584-36

Accessory Items:
8149-12 - Chrome Cam Cover Stock Slotted Screws
8150-12 - Cadmium Cam Cover Stock Slotted Screws
9621-12 - Cam Cover Screw Kit Parkerized

Measurement: Oil Line Fitting: 3/8 x 28
