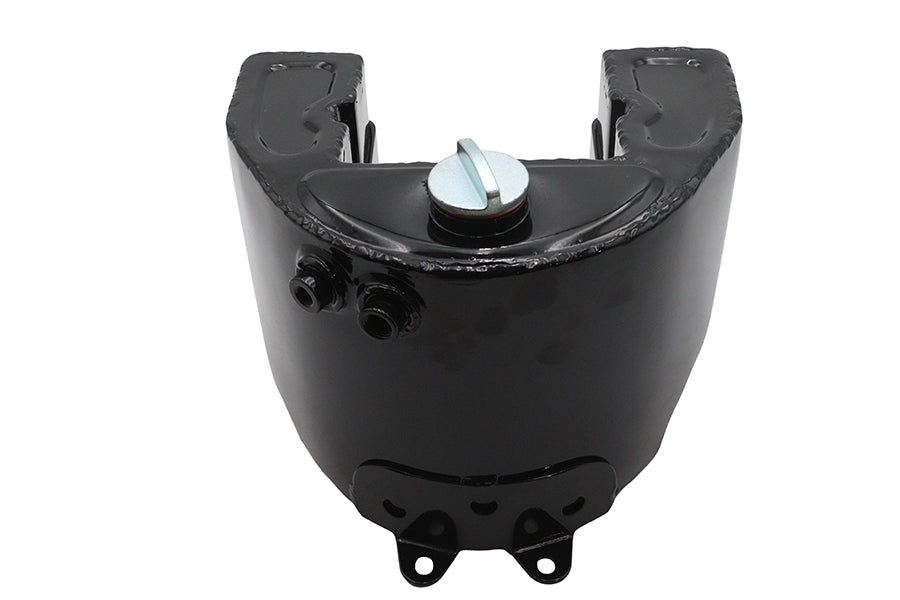

40-0472 - Replica Black Oil Tank
$213.00
SKU 40-0472
Replica 1937 oil tank includes original style and accoutrements in black finish. Tank has embossed smooth edge top welded panel. The oil cap included features a shot peen finish. Bottom feed hole is 3/4 inch - 20 TPI and requires a fitting to resize the hole to 1/2 inch - 20 TPI for the banjo bolt. The left vent hole is 3/8 inch - 24 TPI. The right return hole is 1/2 inch - 20 TPI. We suggest to use taps to clean the threads before installing the oil lines. *NOTE: Must order oil line banjo fitting and oil feed valve separately. *NOTE: Features 1/8 NPT internal threads for vent and return lines. *NOTE: The battery compartment dimensions are 5 inch wide x 4-1/2 inch long x 7 inch tall.
FITS
- 1937 EL
- 1937 UL
MEASUREMENTS
- Height Front: 7 inches
- Height Rear: 6-1/2 inches
- Depth: 8-1/2 inches
- Depth of Battery: 5 inches
- Width: 10 inches
- Battery Width: 4-7/8 inches
TECHNICAL SPECIFICATIONS
- Requires the use of #40-0157 Feed Oil Line washer for #40-0146 Cadmium Feed and #40-0148 Cadmium Return Oil Lines.
- Requires the use of #40-0623 Oil Banjo Line Fitting and #40-0156 Banjo Fitting Bolt for Feed and Return Oil Lines.
- Suggested to use with #9601-10 Inner Primary Cover and Chain Mount Kit.
- Suggested to use with #40-0325 Oil Feed Valve Assembly Zinc Plated.
