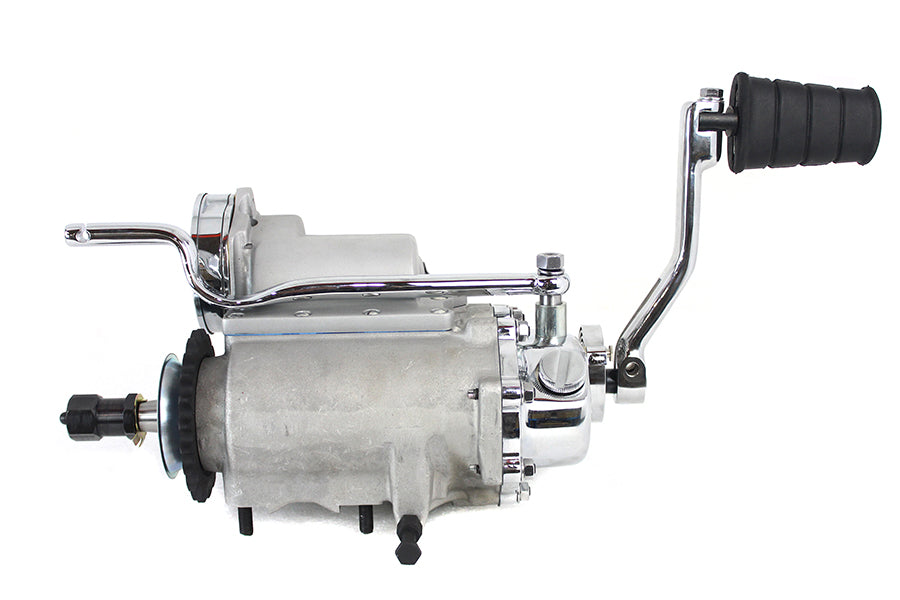

17-0025 - Replica 4-Speed Ratchet Transmission

Transmission is fully assembled.
Transmission is ratchet type and includes original style cast case with early style main drive gear 44 rollers and 2:1 ratio speedometer drive gear internal parts chrome kicker cover and components clutch rod throwout bearing ratchet top without neutral switch featuring a natural finish with chrome dust cover chrome offset kicker arm mount studs seal and key. Does not Transmission comes fully assembled and has a 3.00 ratio FL style. No Manufacturer's Statement of Origin required. Bill of Sale only. Transmission accepts 2:1 ratio speedometer. Includes a chrome clutch release arm. *NOTE: All transmissions are fitted with a 22 tooth countershaft sprocket (V-Twin #19-0081).

Fits:
EL 1936-1952
FL 1941-1964

UOM: EA
Country Of Origin: USA

Suggested Items:
22-1042 - Chrome Kick Starter Kit
17-0281 - Transmission Ratchet Top Assembly

Accessory Items:
17-1765 - 4-Speed FL Transmission Assembly
17-0026 - 4-Speed FL Transmission Assembly
17-2533 - Replica 4-Speed Transmission
17-1778 - 4-Speed Transmission Natural

Tech Notes: *NOTE Lever all the way towards the reaer is first gear! *NOTE The 4 speed tank shift gate is available separately for the early cateye tanks or the late tanks of 1948-1973.
