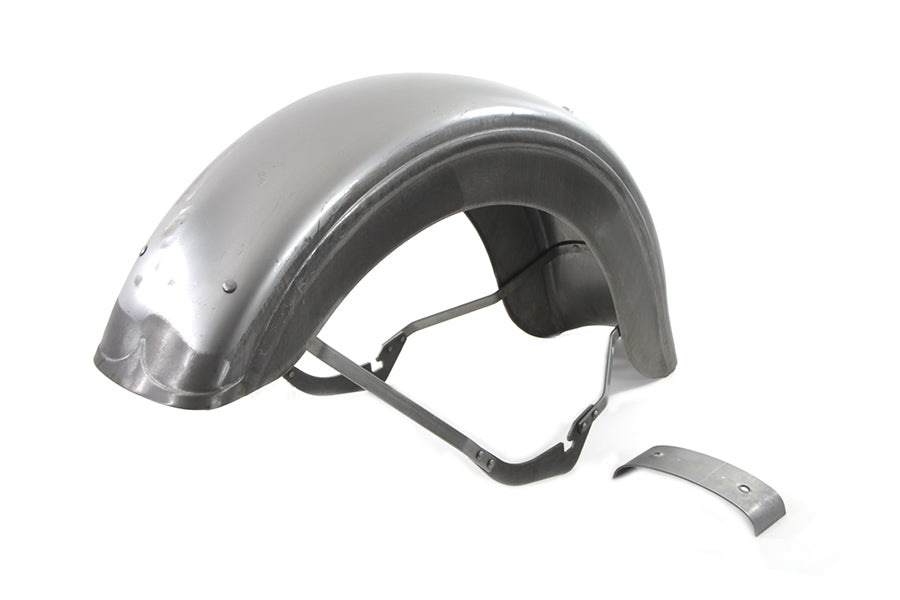

50-0750 - Raw Spring Fork Front Fender

Spring Fork front fender with raw finish OE style rivets a one piece seamless fender body and narrow braces
Fender braces fit on the outside of the offset rockers. We suggest pre fitting the fender prior to painting. Before priming or painting fit the fender body braces and mounting points in place. Fender rivets hinge and brackets will have to be tweaked for final fitment. Patience is required for proper installation! The narrow braces are riveted into place and the side panels are pressed instead of being spot welded into place. *NOTE: The measurement between the 2 holes on the top of the fender where the fender mounts to the fork is 4-1/2 . The inner diameter between the braces measures 11-5/8 . *Note: UPS may consider this part as packaged oversize for shipment as compared to the actual weight which will result in higher shipping costs.

Fits:
EL 1936-1940
FL 1941-1946
UL 1937-1946

UOM: EA
Country Of Origin: TAIWAN

Accessory Items:
8203-6 - Spring Fork Front Fender Mounting Kit
9742-6 - Spring Fork Front Fender Mounting Kit
50-0751 - Replica Spring Fork Front Fender Raw
50-0338 - Big Twin Spring Fork Front Fender Raw
