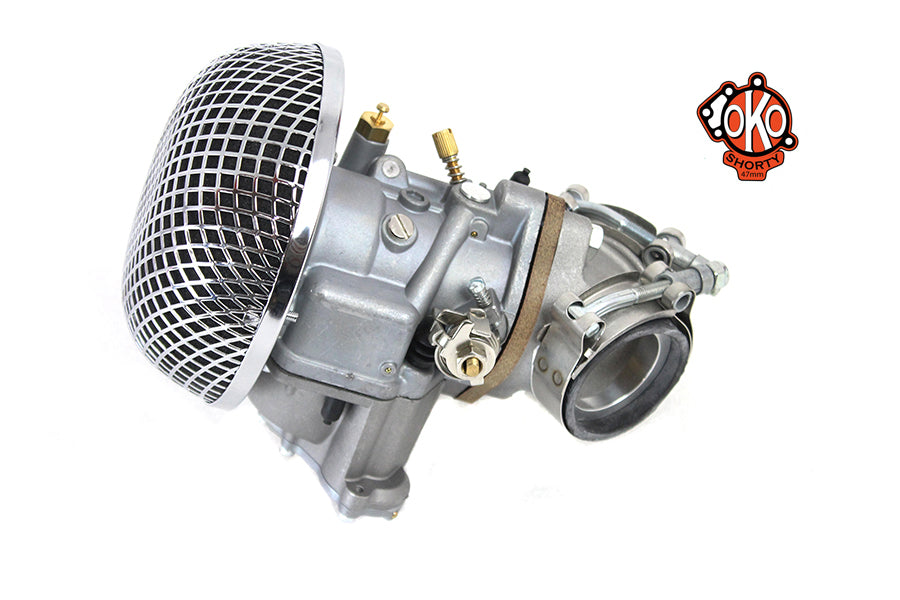

35-0888 - OKO Shorty Carburetor Kit Alloy
SKU 35-0888
Alloy peformance 1-7/8 inch shorty carburetor kit will accept S&S bolt pattern air filter assemblies. It has a relocated accelerator pump nozzle for increased throttle response. This is the R-2 version of the OKO type replacement carburetor. OKO shorty carburetor accepts S&S air cleaners Shorty E carburetor components and rebuild parts. All pieces interchangeable. Air cleaner mount bolt configuration is S&S inchE inch type. *NOTE: Requires carburetor support bracket to mount to the air cleaner and stud between the cylinders. Additional holes in the air cleaner backing plate may be required for mounting. We suggest using Loctite for proper installation. Use with dual cable throttle/assembly cable. *NOTE: The main jet installed is #190. *NOTE: 1-7/8 inch = 47mm.
FITS
- 1957-1977 XL
- 1966-1976 FL
- 1973-1976 FX
MEASUREMENTS
- Bore: 1.875 inches
- Venturi: 1.563 inches
ACCESSORIES
REPLACEMENT
TECHNICAL SPECIFICATIONS
- Required to use with #35-1378 OKO Shorty Carburetor Enrichment Assembly if used with custom air cleaners because the enricher will have to be changed.
