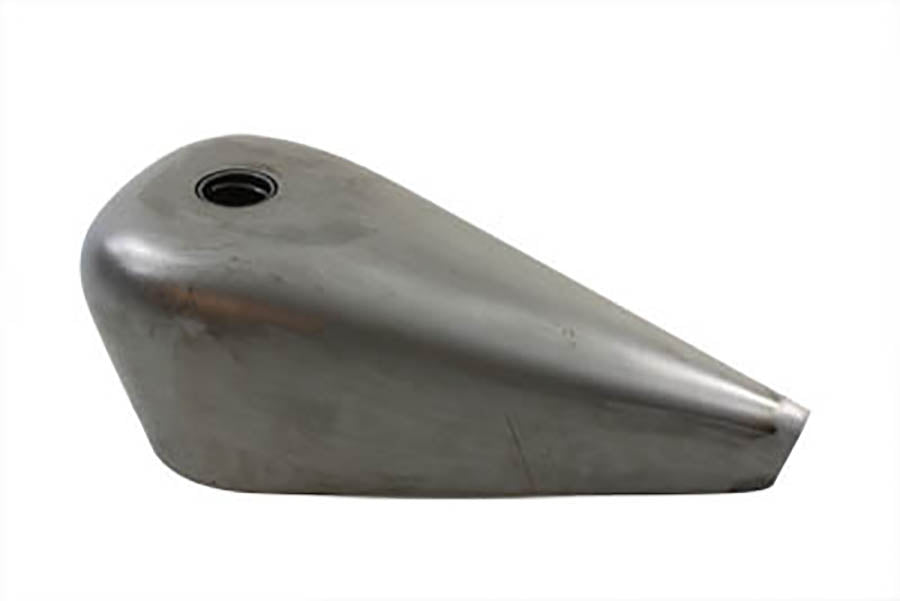

38-0476 - Mini Sporty 2.5 Gallon Gas Tank
SKU 38-0476
Gas tank has a right side petcock opening and a fuel capacity of 2.5 gallons. It features bottom mount design and a center filler neck. The tank requires sanding and primer. Check the tank for flaws and fit prior to painting. Do not grind or sand the seams or joints. Check the petcock opening making sure the petcock can be easily installed. The petcock fitting should be masked or plugged during painting for easy installation of the petcock. Clean the inside of the tank. It is suggested to pressure test the tank and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to help stop leaks an d prevent corrosion. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.
FITS
- 0- Custom - application
MEASUREMENTS
- Top Length: 22 inches
- Bottom Length: 19 inches
- Rear Width: 2-1/2 inches
- Front Width: 9-1/4 inches
- Rear Height: 2 inches
- Front Height: 7 inches
- Front Tunnel Height: 1-1/2 inches
- Rear Tunnel Height: 1-1/2 inches
- Tunnel Length: 19-3/4 inches
- Tunnel Width: 2-3/8 inches
ACCESSORIES
TECHNICAL SPECIFICATIONS
- Suggested to use with #38-0757 Smooth Style Gas Cap Vented.
