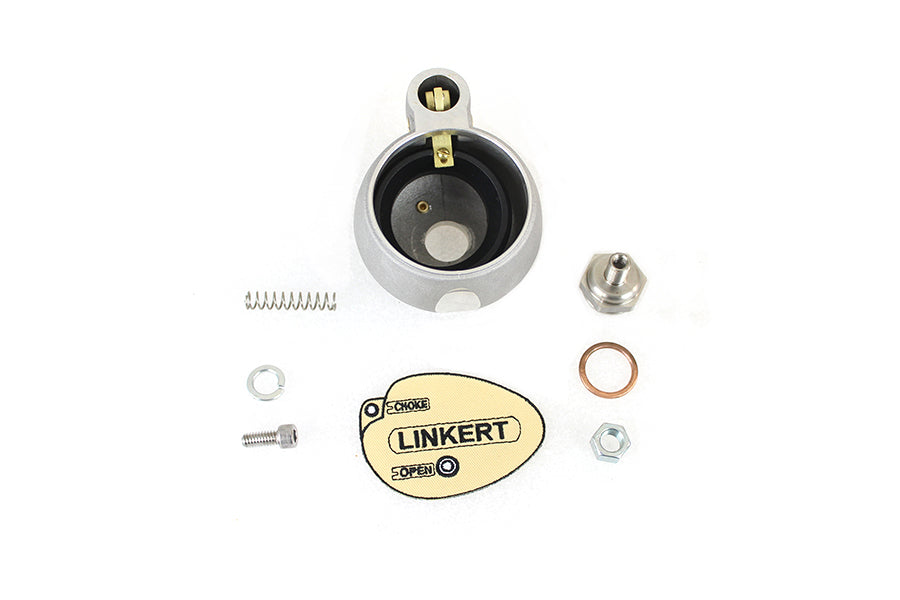

35-1725 - Linkert Carburetor Float Bowl Assembly

Linkert float bowl kit has a bowl with a milled flat top is for Overhead Valve models and is the bean pot style with additional capacity.
Larger diameter adds 1.45 cubic inches to hold additional fuel. Extra capacity for racing applications has external bow hex cap. Has 9/16 x 20 hex plug at needle valve opening. Fits all brass linkert carburetors for additonal fuel capacity! NOTE: Original Bean Pot linkert bowl design was developed by Tom Sifton Motorcycle Products. As original float brass top cap is for use on side valve models only. NOTE: Float bowl with drain screw includes unsinkable black nitrophyl linkert float with our unique 1 piece float arm in brass for smooth action. Pivot pin with two caps stainless steel needle with matching brass seat assembly installed. Needle valve seat opening is milled flat and sealed by carburetor body after assembly.

Fits:
EL 1948-1952
FL 1948-1965

UOM: KIT
Country Of Origin: TAIWAN
