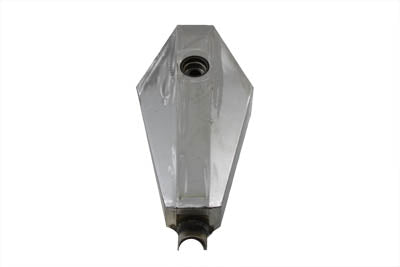

38-0172 - Koffin Style 2.2 Gallon Gas Tank
SKU 38-0172
Raw gas tank accepts a left or right side 1/4 inch National Pipe Thread petcock and has a fuel capacity of 2.2 gallons. It has a single front tab and a rear U-bracket. Use proper hardware for installation process. Please test fitment before painting. Tank weld seams may require filler to meet your individual requirements. Do not grind or sand the seams as this may cause leaks. We suggest using Kreem gas tank combo kit to clean condition and seal. This will help to stop leaks and prevent corrosion. Check petcock opening making sure the petcock can be easily installed. Petcock fitting should be masked or plugged during painting for easy installation of petcock. *NOTE: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs
FITS
- 0- Custom - application for 1-1/2 top frame tubes
MEASUREMENTS
- Top Length: 18 inches
- Bottom Length: 17 inches
- Bottom Legnth w/Tabs: 20-7/8 inches
- Rear Width: 4 inches
- Front Width: 3 inches
- Rear Height: 3 inches
- Front Height: 8 inches
- Front Tunnel Height: 1.5 inches
- Rear Tunnel Height: 1.5 inches
- Top Tunnel Width: 1-13/16 inches
- Bottom Tunnel Width: 1-13/16 inches
- Tunnel Length: 17 inches
ACCESSORIES
TECHNICAL SPECIFICATIONS
- Suggested to use with #38-0307 Ratcheting Style Gas Cap Vented.
