22-0783 - Kick Starter Kit Polished

Kick starter kit includes all assembly components and features a polished finish.

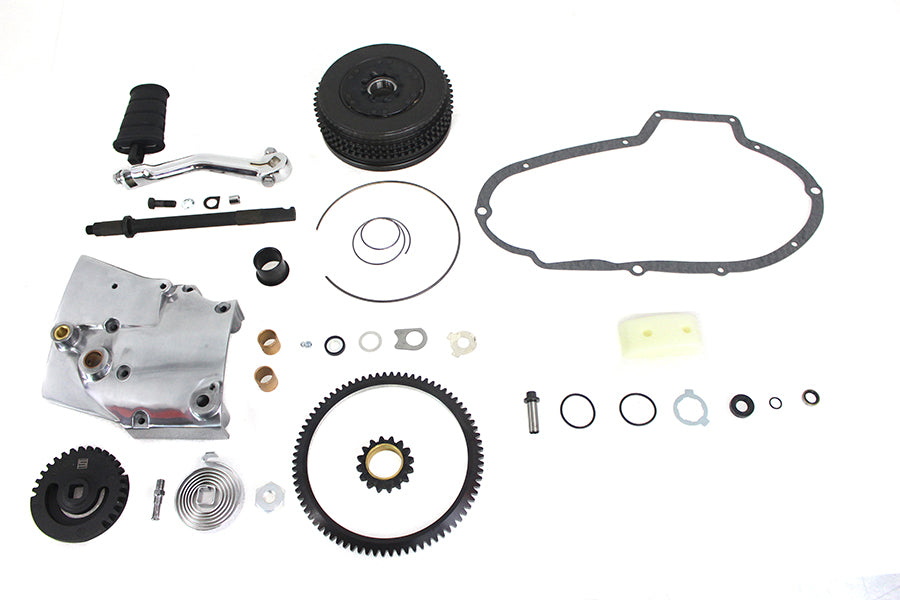

Kit includes kick starter cover clutch drum with ratchet that is gear riveted into place kick starter shaft and drill template. The drill template requires a hole to be drilled for the kick starter shaft bushing for the kick starter shaft which is located on the left side of the engine case. The template includes a pilot drill and finish drill to finish the bushing. However the drill bits are not supplied. Accurate drilling is required. The rear brake master cylinder must be moved forward with forward controls. *NOTE: Requires fixture for drilling because the installer must drill holes for kick start shaft bushing and gear stop pin in the left side engine case. Must order fixture separately. Follow photos on instructions in the ealry sportster service manual.

Fits:
XL 1980-1984

UOM: KIT
Country Of Origin: TAIWAN

Suggested Items:
43-0119 - Sprocket Cover Polished
17-0308 - Chrome Kick Starter Arm
15-0170 - V-Twin Primary Cover Gaskets
18-1219 - 1981-1984 XL Clutch Drum

Accessory Items:
43-0119 - Sprocket Cover Polished
17-0331 - Replica Kick Starter Pedal Assembly
16-0466 - Kick Starter Drill Fixture Tool

Tech Notes: Required to use with #16-1979 XL Drill Fixture Tool.
