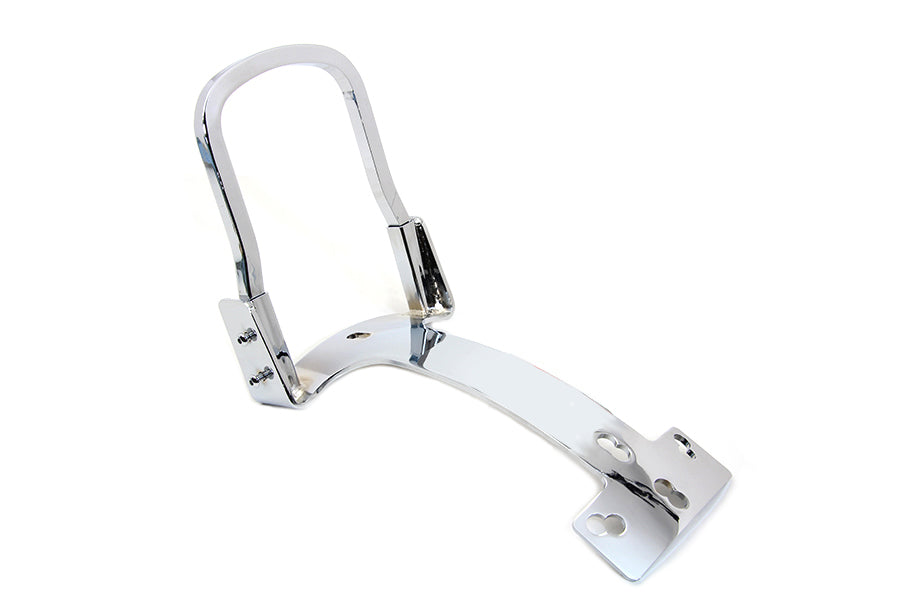

50-0503 - Grab Rail Sissy Bar Kit Chrome

Grab rail kit includes a mount bracket and 8-1/2 sissy bar top in a chrome finish. Includes 4 buttonhead screws 4 nyloc nuts and 4 washers. The 4 chrome screws are used to hold the side plate to the hand rail.
Installation of this product will require making permanent modifications to the fender. This product is recommended for use on steel fenders only. Accepts aftermarket or OEM sissy bar uprights that are NO MORE THAN 10 tall 6-11/16 wide. Remove the seat from the motorcycle and clean the fender. Place the mount on the fender and determine a mounting location. You may choose to slightly bend the backbone to conform to the contour of the fender for a better fit. *NOTE: Generally the rear mounting hole in the moutning plate will be placed so that it will be secured with the rear seat mounting bolt though it may be positioned in any location by drilling two holes. *NOTE: Kit includes the following: (2) button heads - 1/4 x 20 x 7/8 (2) button heads - 5/16 x 20 x 7/8 (2) washers - 5/16 I.D. x 7/8 O.D. (2) washers - 3/8 I.D. x 7/8 O.D. (2)nylon nuts - 1/4 x 20 and (2) nylon nuts - 5/16 x 20.

Fits:
FXD 1991-2017
FXST 1986-2022
XL 1991-2022

UOM: KIT
Country Of Origin: CHINA
