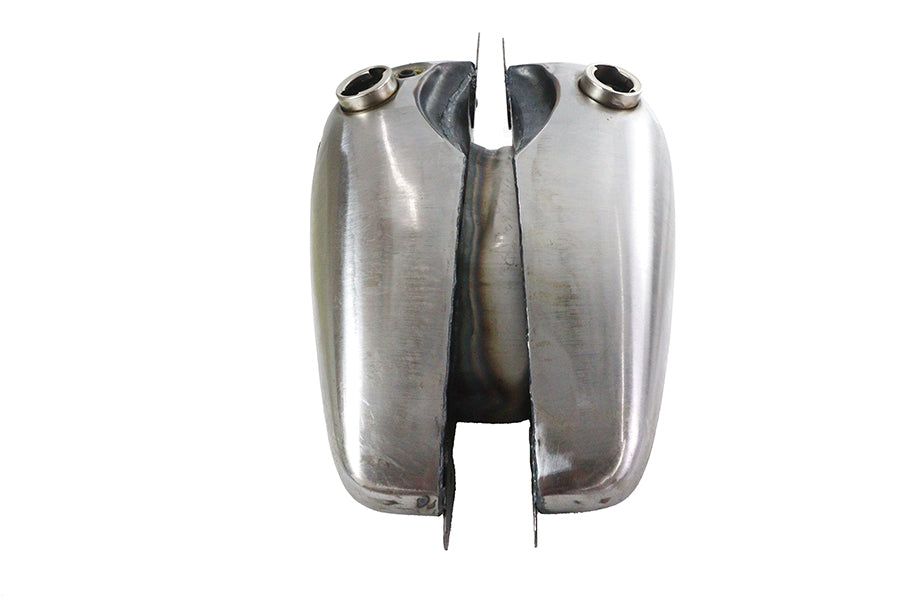

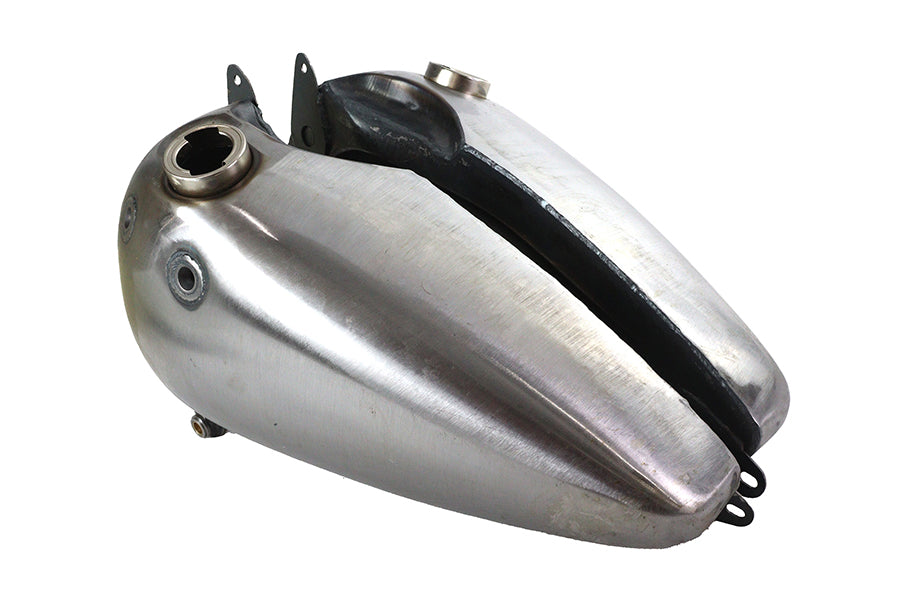

38-0114 - Gas and Oil Tank Set Raw

38-0114 - Gas and Oil Tank Set Raw

$628.00 Sale Save


Item is in stock Only 10 left in stock Item is out of stock Item is unavailable

Raw tank set accepts cateye dash plate early 1936-1946 shifter gate and gas shut off rod kit.
Drain plug is 5/8 -18UNF. Feed thread is 1/8 -27NPT. Vent hole for banjo bolt is 3/8 -24 UNF. Return Hole is 1/8 -27NPT. May require fuel rod alignment using V-Twin #16-0182 prior to painting and installation of the shut off rod assembly. *NOTE: Gas is on the left and oil is on the right. Please test fitment before painting. Tank weld seams may require filler to meet your individual requirements. Do not grind or sand the seams as this may cause leaks. We suggest using Kreem gas tank combo kit to clean condition and seal. Check petcock opening making sure the petcock can be easily installed. Petcock fitting should be masked or plugged during painting for easy installation of petcock. **NOTE: UPS may consider this part as packaged oversize for shipment as compared to the actual weight which will result in higher shipping costs. *NOTE: Some 45 tank installation with a cateye dash will require 1/8 spacers on the top of the tank bolt to allow dash base to fit properly.

G 1936-1946
W 1936-1946
WL 1941-1952

Country Of Origin: TAIWAN
Accessory Items: 38-0554 - Gas Tank Panel Set Raw Steel
Tech Notes: Suggested to use gas shut off rod kit #38-7009. Suggested to use #41-0113 Kreem gas tank combo kit
Measurement: Oil Capacity: 3.5 Quart
