23-9222 - Front Brake Backing Plate Kit Right Side Chrome by V-Twin

V-Twin

23-9222 - Front Brake Backing Plate Kit Right Side Chrome

$465.00 Sale • Save

SKU 23-9222

Item is in stock Only 10 left in stock Item is out of stock Item is unavailable

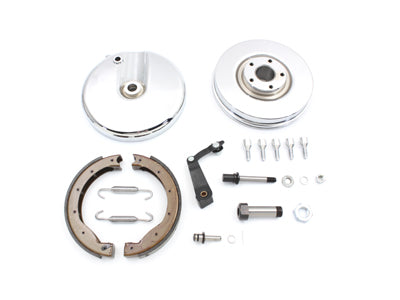

Kit includes brake shoes springs chrome backing plate chrome drum axle sleeve nuts cam with leverm and mount stud for right side brake. NOTE: Pivot stud hole is oversize to allow 7/16 inch stud with locking washer locking face toward backing plate to be inchset inch when adjusting brake shoes.

FITS
  • 1969-1971 FL

ACCESSORIES
  • 24-0753 - Chrome Fork Damper Kit
  • 24-0202 - Fork Steering Damper Kit
  • 23-0753 - Rear Disc Brake Master Cylinder
REPLACEMENT
  • 23-9231 - Chrome Front Brake Backing Plate Right Side
  • 44-0302 - Front Axle Sleeve
  • 23-2213 - Front Brake Drum Chrome
  • 24-0158 - Front Brake Operating Lever Right Side
TECHNICAL SPECIFICATIONS
  • Suggested to use with #48-0835 Facotry Service Manual for 1958-1969 FL.
  • Suggested to use wtih #24-0128 Backing Plate Locating Washer for Pivot Stud.
  • Suggested to use wtih #24-0127 Backing Plate Pivot Stud with Washer.
