23-9204 - Front Brake Backing Plate Kit Left Side Chrome by V-Twin

V-Twin

23-9204 - Front Brake Backing Plate Kit Left Side Chrome

$398.00 Sale • Save

SKU 23-9204

Item is in stock Only 10 left in stock Item is out of stock Item is unavailable

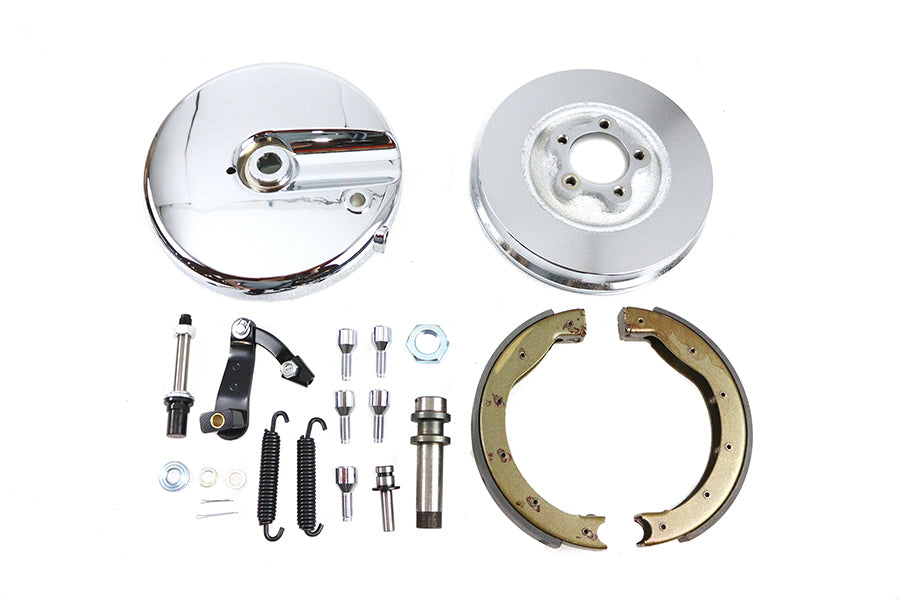

Kit includes brake shoes springs satin chrome backing plate chrome drum axle sleeve nuts cam with lever and mount stud for left side brake. NOTE: Pivot stud hole is oversize to allow 7/16 inch stud with locking washer locking face toward backing plate to be inchset inch when adjusting brake shoes.

FITS
  • 1949-1966 FL

ACCESSORIES
  • 24-1461 - Black Fork Damper Kit
  • 24-0753 - Chrome Fork Damper Kit
  • 23-0513 - Duro Soft Front or Rear Brake Pad Set
  • 23-9218 - Front Brake Backing Plate Kit Left Side Black
REPLACEMENT
  • 23-1759 - Brake Backing Plate Cam Lever Stud
  • 44-0301 - Front Axle Sleeve
  • 23-2212 - Front Brake Drum Satin Chrome
  • 23-0515 - Replica Front Brake Shoe Set
TECHNICAL SPECIFICATIONS
  • Suggested to use with #48-0835 Factory Service Manual for 1958-1969 FL.
  • Suggested to use wtih #24-0128 Backing Plate Locating Washer for Pivot Stud.
  • Suggested to use wtih #24-0127 Backing Plate Pivot Stud with Washer.
