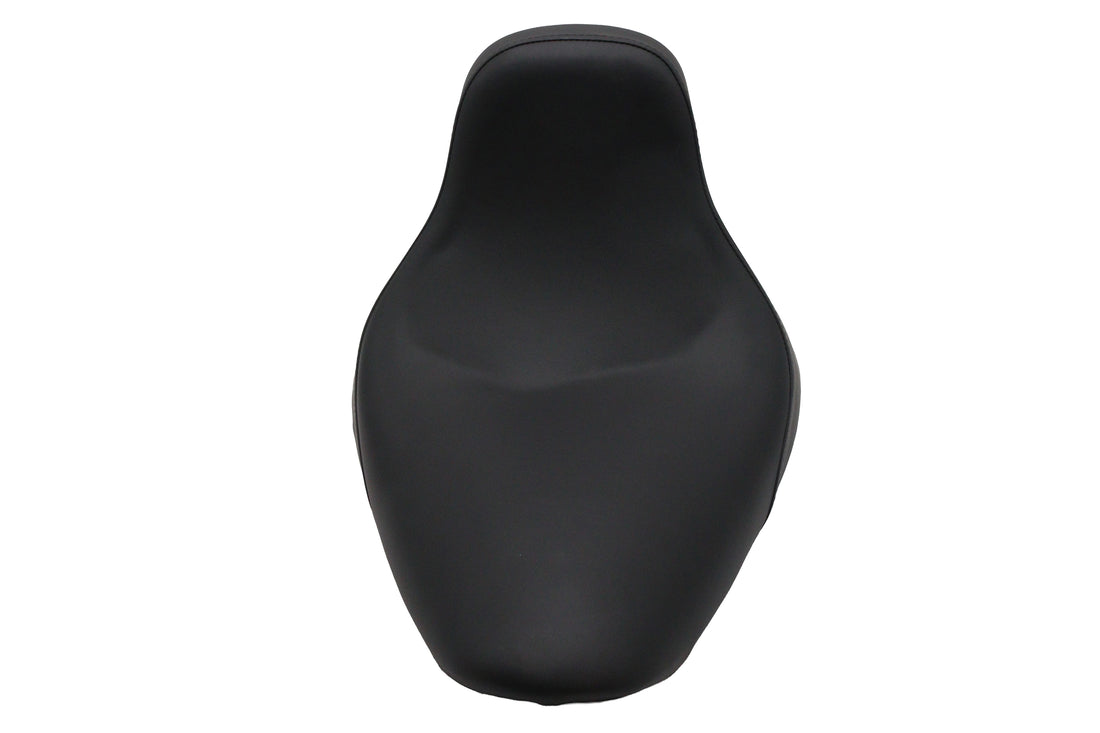

47-4003 - Factory Sample Wyatt Gatling inchButt Bucket inch Solo Seat
SKU 47-4003
Wyatt Gatling inchButt Bucket inch seat includes bracket for direct frame mounting. Seat is covered in black naugahyde and baseplate and mounts are steel. The mounting brackets are 13-1/4 inch apart. Factory sample cover are brand new pre-production parts but have imperfections in the finished surface. Check threaded and bearing holes for excess plating before installation. There are no physical defects such as cracks or holes there will be cosmetic imperfections only. Sample parts may show marks from installation test and fitment. The seats are free of rips and tears but may exhibit scuffs or scratches. Some seats may also have bubbling in the material which can cause it not to sit flat. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.
FITS
- 2000-2005 FXST
- 2000-2006 FLSTF
- 2000-2007 FLST
MEASUREMENTS
- Length: 20-1/2 inches
- Width Front: 10-1/2 inches
- Widest Width Front: 13-3/4 inches
- Width Rear: 8 inches
- Length Front: 12 inches
- Base Length Front: 16 inches
- Base Length Rear: 11 inches
- Thickness Front: 1/2 inches
- Thickness Rear: 2 inches
ACCESSORIES
TECHNICAL SPECIFICATIONS
- Suggested to use with #9915-4 Seat Bracket Mount Kit Chrome
