40-2018 - Factory Sample Replica Chrome Oil Tank by V-Twin

V-Twin

40-2018 - Factory Sample Replica Chrome Oil Tank

$95.00 Sale • Save

SKU 40-2018

Item is in stock Only 0 left in stock Item is out of stock Item is unavailable

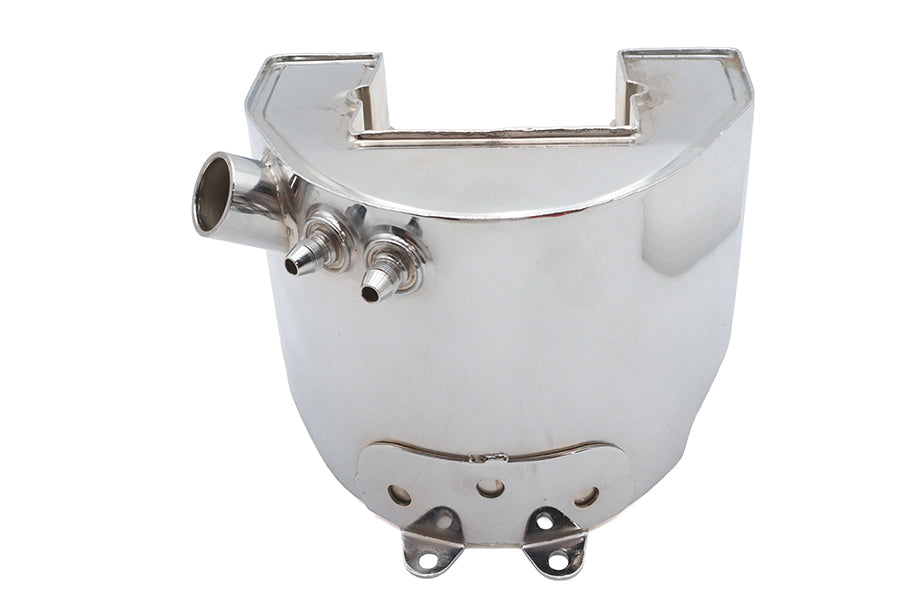

Replica chrome oil tank features side fill and wrap around type construction including seam-welded edges which show weld marks as on original tanks. Tank has a rubber plug. Use with 1936-1957 battery rod tab supports. Tank measures 10-1/4 inch wide X 7-1/8 inch tall. Battery box measures 7-1/8 inch tall X 4-1/4 inch wide. Oil fitting is 20 TPI x 9/16. *NOTE: The battery compartment dimensions are 5 inch wide x 4-1/2 inch long x 7 inch tall. Factory sample are brand new pre-production parts but have imperfections in the finished surface. Check threaded and bearing holes for excess plating before installation. There are no physical defects such as cracks or holes there willbe cosmetic imperfections only. Sample parts may show marks from installation test and fitment.

FITS
  • 1936-1940 EL
  • 1941-1948 UL
  • 1941-1964 FL

MEASUREMENTS
  • Height Front: 7 inches
  • Height Rear: 6 inches
  • Depth: 8 inches
  • Depth of Battery: 5 inches
  • Width: 10 inches
  • Battery Width: 4-3/4 inches
ACCESSORIES
  • 31-0933 - Inspection Tag Holder 1/2 inch Mount Black
  • 16-0529 - Mini Motorcycle Lift Tool
  • 16-0158 - Primary Inspection Plug Wrench Tool
  • 40-0429 - Replica Chrome Oil Tank
TECHNICAL SPECIFICATIONS
  • Suggested to use #8115-1 #8114-1 or #9504-1 timing plugs
  • Suggested to use with #42-9940 battery rod set
  • Suggested to use with #2071-10 Chrome Chain Guard and Oil Tank Mount Kit
  • Suggested to use with #40-0877 WR Hex Barb Oil Line Fitting Set Zinc Plated
