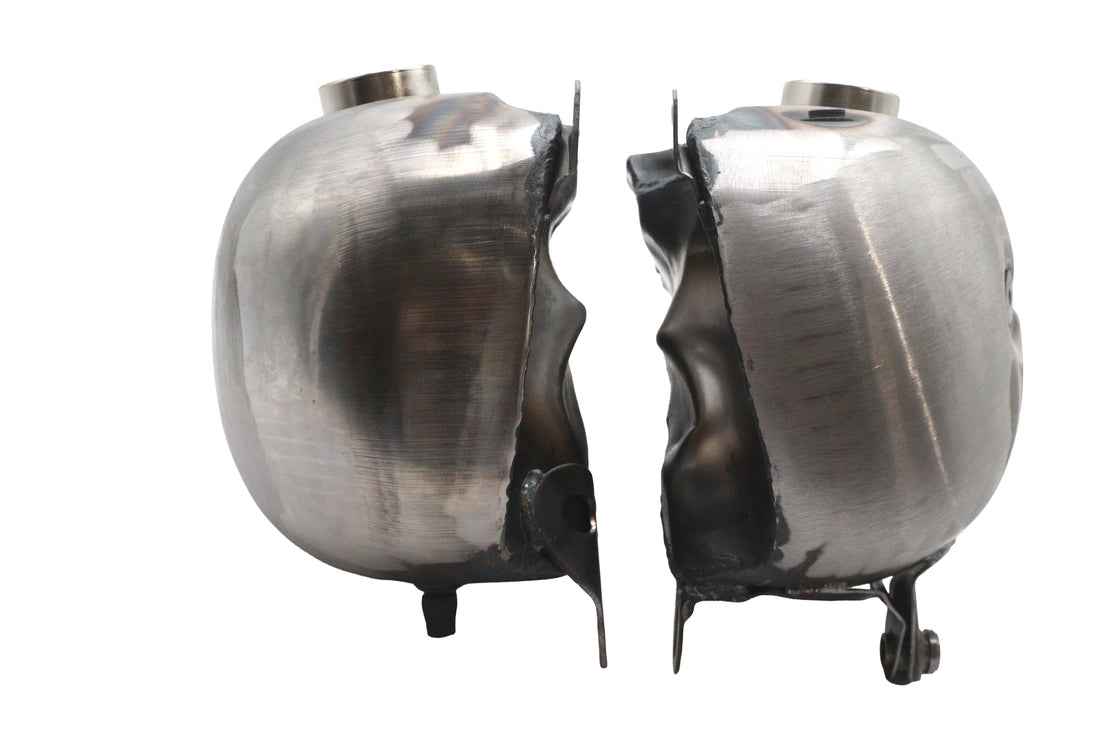

38-7222 - Factory Sample Fat Bob 3.5 Gallon Gas Tank Set by V-Twin

V-Twin

38-7222 - Factory Sample Fat Bob 3.5 Gallon Gas Tank Set

$170.00 Sale • Save

SKU 38-7222

Item is in stock Only 0 left in stock Item is out of stock Item is unavailable

Fat Bob gas tank has a fuel capacity of 3.5 gallons. Tank features provisions to accept two early vented gas caps reserve shut-off rod and two or three light dash. It also features shifter gate mount holes. Order shifter gate and mounting hardware separately. Tank may require fuel rod alignment before installation of shut-off assembly. Shut off fitting should be masked or plugged during painting for easy installation of shut off valve. Carefully check the tank for flaws and fit before painting. Do not grind or sand the seams or joins. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal in order to help stop leaks and prevent corrosion. Factory sample cover are brand new pre-production parts but have imperfections in the finished surface. Check threaded and bearing holes for excess plating before installation. There are no physical defects such as cracks or holes there will be cosmetic imperfections only.

FITS
  • 1948-1965 FL

MEASUREMENTS
  • Top Length: 18-1/4 inches
  • Bottom Length: 17-3/4 inches
  • Rear Height: 1-1/4 inches
  • Front Height: 8 inches
  • Front Tunnel Height: 8-3/4 inches
  • Rear Tunnel Height: 1-1/2 inches
ACCESSORIES
  • 38-0119 - Fat Bob 3.5 Gallon Gas Tank Set
  • 38-7218 - Factory Sample Bobbed 3.5 Gallon Gas Tank Set
  • 38-7220 - Factory Sample King 3.1 Gallon Gas Tank
  • 38-7221 - Factory Sample Replica King 3.2 Gallon Gas Tank
TECHNICAL SPECIFICATIONS
  • Suggested to use with #49-0111 Chrome 3-Speed and Reverse Left Side tank hand Shifter Gate.
  • Suggested to use with #41-0113 Kreem Gas Tank Combo Kit.
  • Suggested to use with #49-0075 Left Side Tank Hand Shifter Gate.
