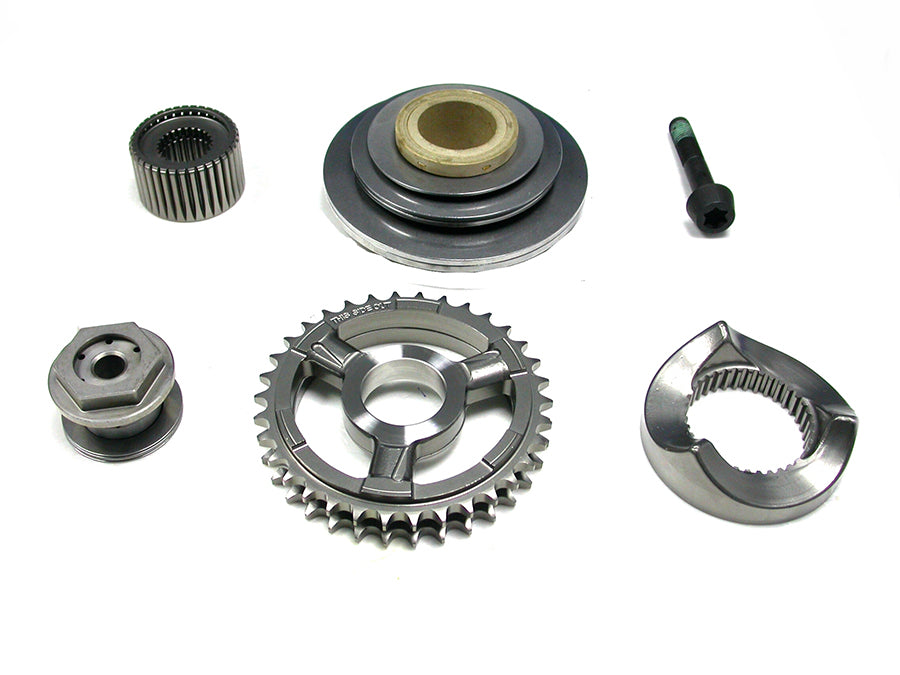

19-0299 - Compensator Sprocket Kit 34 Tooth

Premium High Performance Compensator Kit engineered with heavier springs and increased travel.
New premium design will support the high torque output associated with high compression & large displacement engines. Features improved oil passages and needle bearing thrust washer. Designed to outperform Original compensators. Stock bolt on upgrade kit is for 2012-13 FXD FXST FLST and 2011-2013 FLT models. But will require OEM# 1030021 shims for all 2014-up FXD FLST and FLT models. Kit can also be used to upgrade 2006-11 FXST FLST and FXD; but requires separate purchase of the following OE M#'s: 62700064 10300021 and 12200065. 2007-10 models will require 62700063 10300021 and 12200065. 2012-13 FXD FXST FLST amd 2011-2013 FLT models will require separate purchase of OEM# 10300021 shims. *NOTE: 2006-11 FXD 2007-11 FLST FXST and 2007-10 FLT models require the use of a volt tech alternator rotor. 2006 FXD models will also require the use a volt tech alternator stator unmolded 32 amp.

Fits:
FLHXXX 2009-2013
FLST 2007-2016
FLT 2011-2013
FXD 2006-2013
FXST 2007-2016

UOM: KIT
Country Of Origin: TAIWAN
OEM Cross Reference: 42200064A
Suggested Items: 13-0871 - Compensator Sprocket Spring Pack Kit

Accessory Items:
19-0028 - Solo 32 Tooth Solid Compensator and Tensioner Shoe Kit
19-0584 - Compensator Sprocket Kit 34 Tooth
19-0587 - Compensator Sprocket Kit 34 Tooth
19-0027 - M8 Solid Compensator Kit 34 Tooth

Tech Notes: Required to use with #32-0870 Volt Tech Alternator Rotor for 2006-11 FXD 2007-11 Softail and 2007-10 FLT models. Required to use with #32-0868 Volt Tech Alternator Stator Unmolded 32 Amp for 2006 FXD models.
