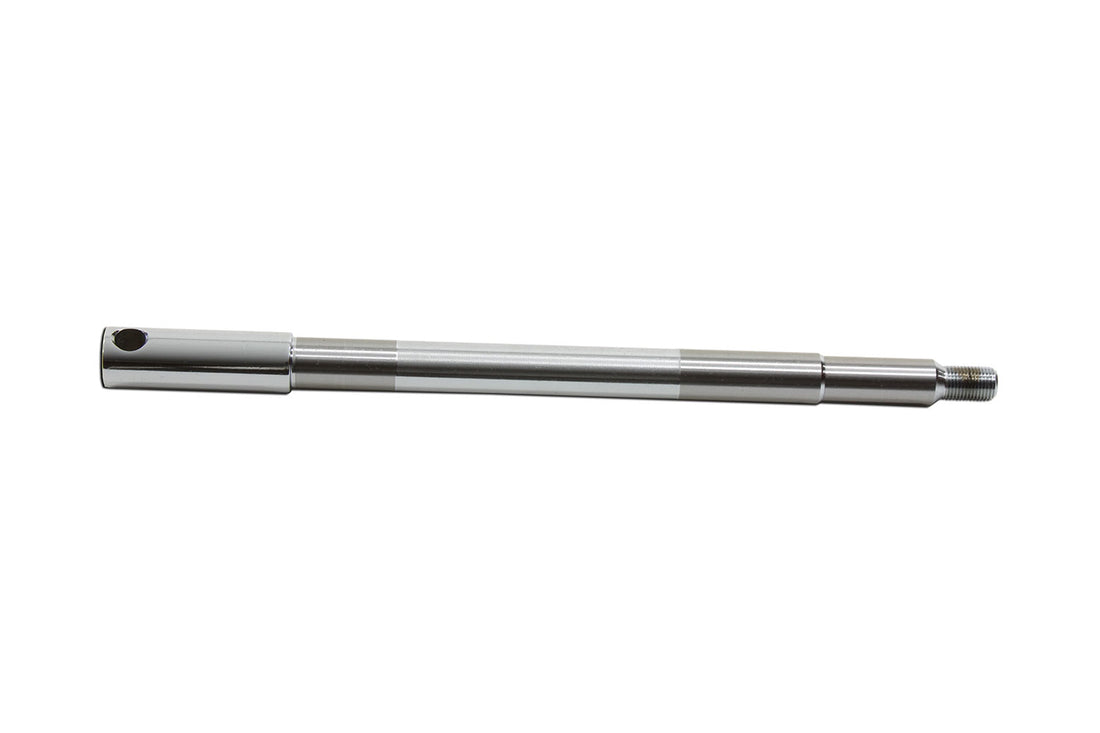

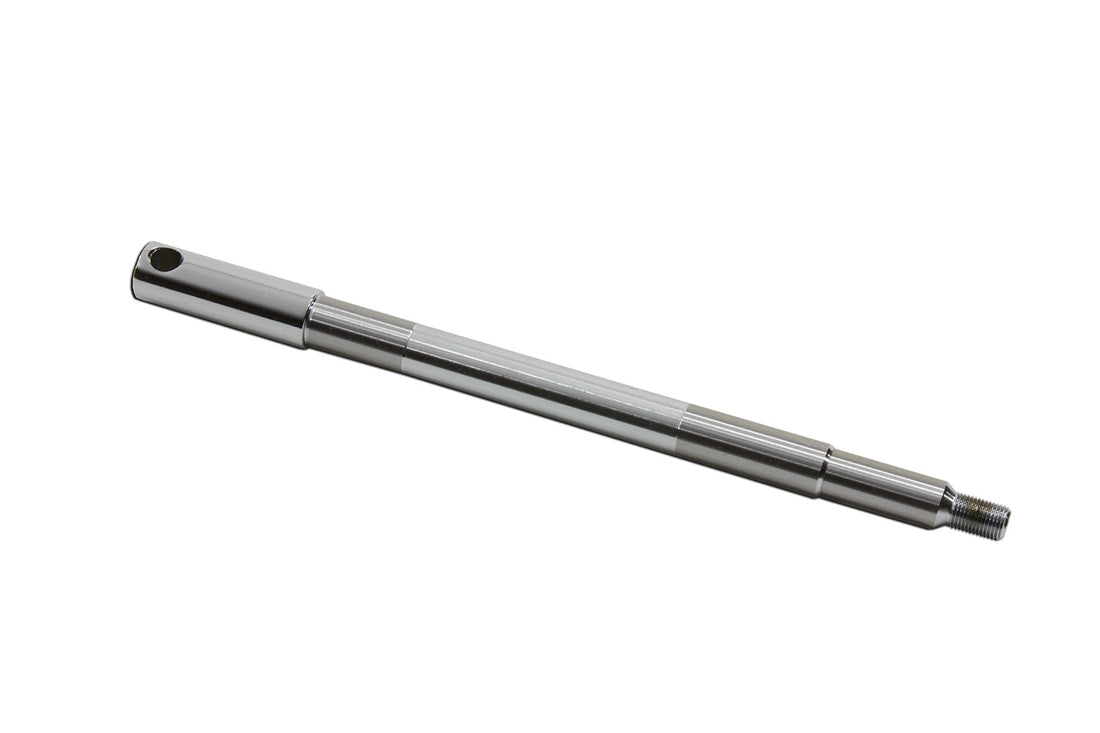

44-0202 - Chrome Front Axle

Triple stepped axle with threaded end has a 10-1/8 inch bearing surface length and can be used to replace a worn out or damaged axle. The outer diameter of the first step down towards the threads is .667 inch the center is .736 inch and the step down below the end with the hole is .749 inch. From the first step down below the end with the hole to the step down before the threads is 8-1/8 inch and from below the end with the hole on the step down to the of threads is 10-5/8 inch. *NOTE: Must order nut kit separtely.

MEASUREMENTS

• Bearing Surface: 10-1/8 inches
• Surface w/o Thread: 9-1/4 inches
• Overall Length: 11-7/8 inches
• Outer Diameter: .850 inches
• Threads per Inch: 20
• End w/Hole O.D.: .859 inches
• Thread Length: 1 inches
