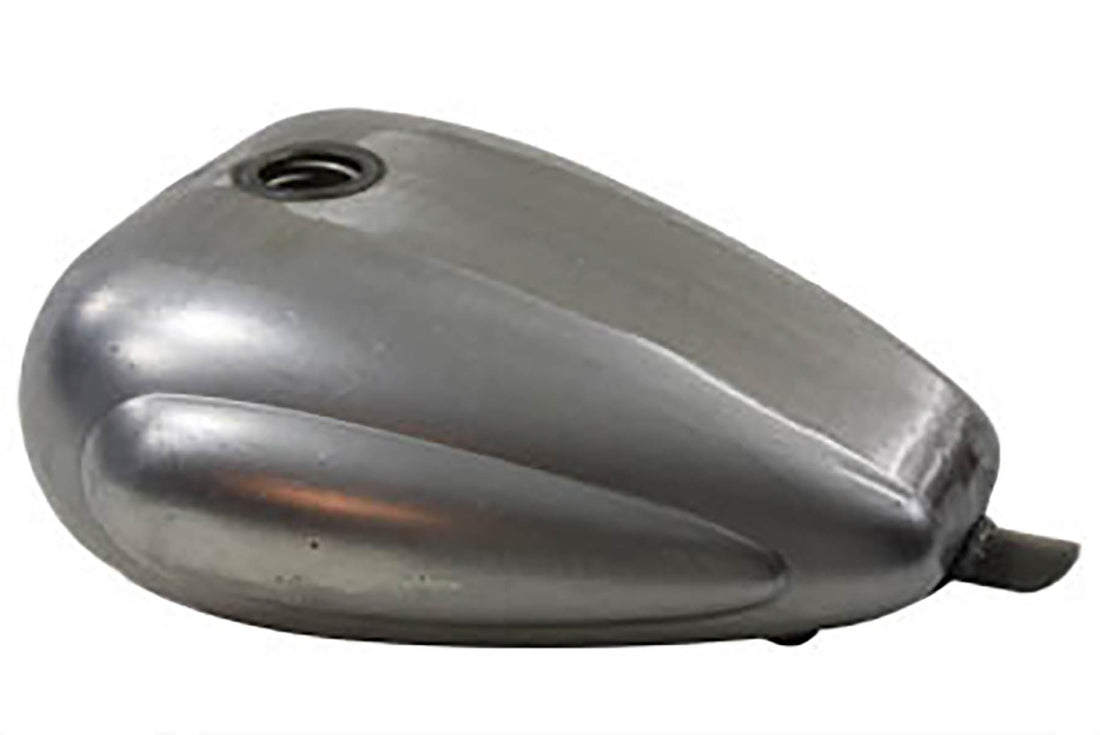

38-5060 - Chopper 3.0 Gallon Gas Tank
SKU 38-5060
Saga inchDish gas tank inch has a right side petcock opening and features dished sides with a fuel capacity of 3.0 gallons. It uses a bung style cap which is not included. Check the tank for flaws and fit before painting. The tank requires sanding and primer. Do not grind or sand the seams or joints. Check the petcock opening making sure the petcock can be easily installed. The petcock fitting should be masked or plugged during painting for easy installation of the petcock. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condi tion and seal to help stop leaks and prevent corrosion. End to end of mounting tabs measures 19-7/8 inch. Accepts a 3/8 inch NPT Petcock. *Note: UPS may consider this part as packaged inchoversize inch for shipment as compared to the actual weight which will result in higher shipping costs.
FITS
- 0- Custom - application
MEASUREMENTS
- Top Length: 17 inches
- Bottom Length: 15 inches
- Rear Width: 5 inches
- Front Width: 11 inches
- Rear Height: 2 inches
- Front Height: 7.75 inches
- Front Tunnel Height: 3 inches
- Rear Tunnel Height: 1 inches
- Tunnel Length: 16.5 inches
