35-0113
35-0113 - Carburetor Adapter by V-Twin

V-Twin

35-0113 - Carburetor Adapter

$50.00 Sale • Save

SKU 35-0113

Item is in stock Only 10 left in stock Item is out of stock Item is unavailable

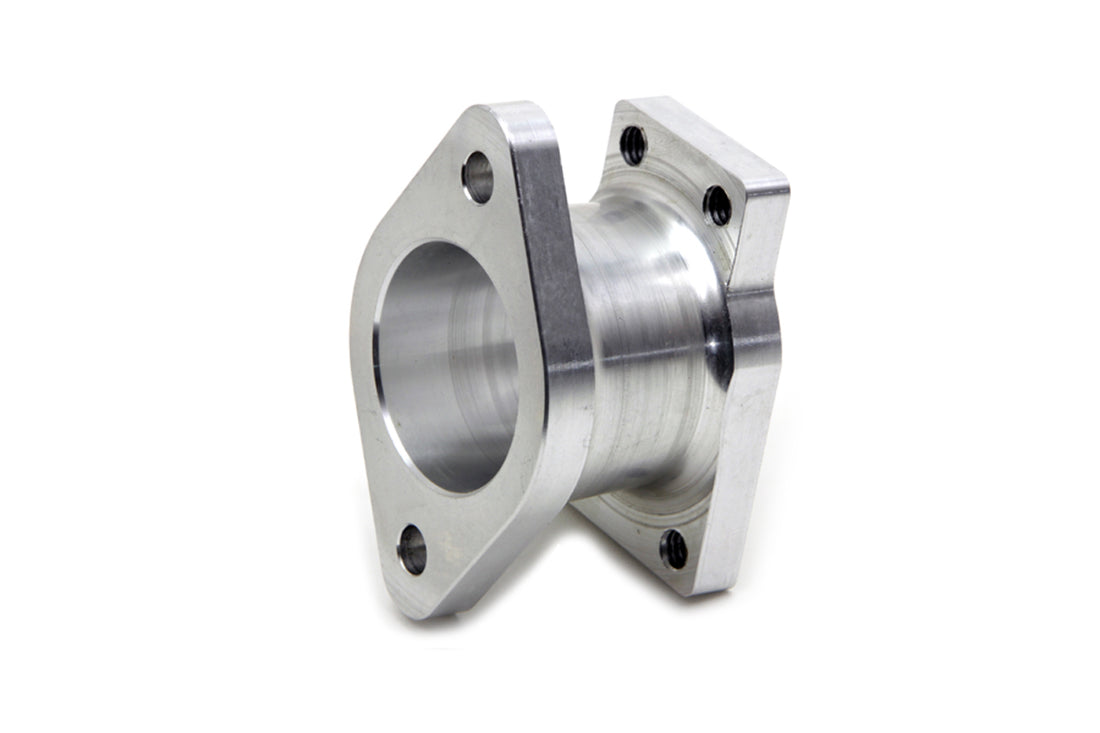

This carburetor adapter mounts to a four bolt stock Linkert manifold to allow use of a two bolt stock Bendix carburetor. Adapter is constructed of aluminum and has a polished finish. On the 2-hole side the center-to-center distance between the mount holes measures 2-3/4 inch vertically. On the 4-hole side the center-to-center distance between the mount holes measures 2-1/2 inch vertically 1 inch horizontally at the top and 1-1/2 inch horizontally at the bottom. Adapter is made of aluminum and features a polished finish.

FITS
  • 0- Custom - application mounts to 4 bolt stock manifold

MEASUREMENTS
  • Overall Length: 2 inches
  • Overall Width: 3-5/8 inches
  • Intake Bore I.D.: 1-9/16 inches
  • 2-Hole Side Width: 7/16 inches
  • Sidewall Thickness: 5/16 inches
ACCESSORIES
  • 35-0409 - Power Intake Manifold Clamp Kit with Flat Seals
  • 35-0415 - Power Intake Manifold Clamp Kit with O-Rings
