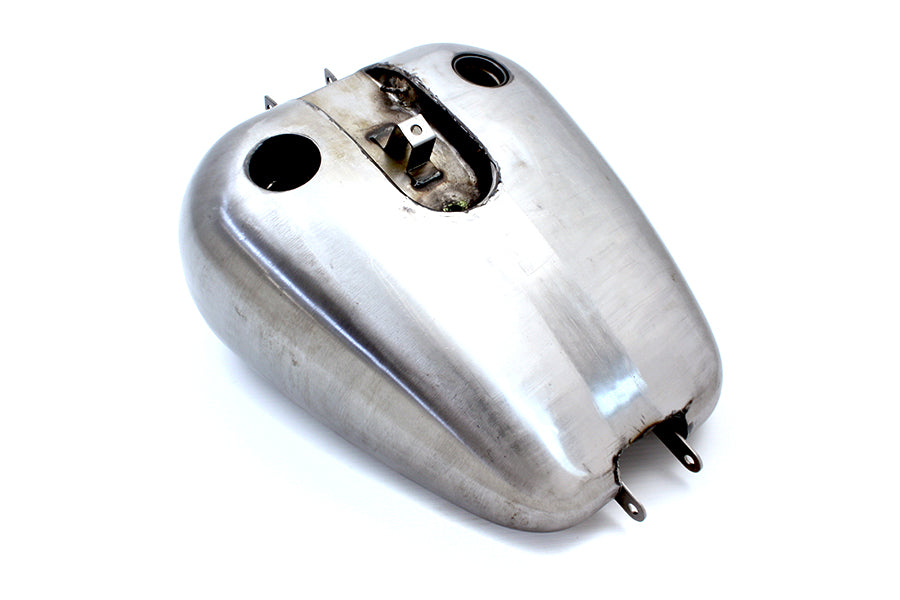

38-0822 - Bobbed 5.1 Gallon Gas Tank

Bobbed gas tank is dual cap type for carburetor models. It features a left side fuel gauge bung and a right side screw bung. Order gas caps separately. Tank is not for fuel injected models. Check the tank for flaws and fit before painting. It requires sanding and primer. Do not grind or sand the seams or joints. Check the petcock opening making sure the petcock can be easily installed. The petcock fitting should be masked or plugged during painting for easy installation of the petcock. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to help stop leaks and prevent corrosion. *NOTE: Does not have internal wires for the gas gauge.

MEASUREMENTS

• Top Length: 18-1/2 inches
• Bottom Length: 18-1/4 inches
• Rear Width: 9-1/2 inches
• Front Width: 15 inches
• Rear Height: 2 inches
• Front Height: 8 inches
• Front Tunnel Height: 6-1/2 inches
• Rear Tunnel Height: 1-1/2 inches
• Tunnel Length: 18-1/2 inches
• Front Bracket Width: 3 inches
• Rear Bracket Width: 1 inches
• Bracket to Bracket: 20-3/4 inches
