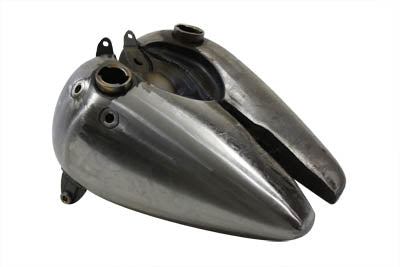

38-0183 - Bobbed 3.5 Gallon Gas Tank Set
Gas tank set accepts left side petcock with 3/8 FNPT thread and has a fuel capacity of 3.5 gallons. The right side tank has 1/8 FNPT thread for fuel crossover tube. Tanks do not have emblem mounts.
Bobbed two piece gas tank set features handshift mounts. Check the tank for flaws and fit before painting. Do not grind or sand the seams or joints. Clean the inside of the tank. It is suggested to pressure test and use a tank sealer. We suggest using Kreem gas tank combo kit to clean condition and seal to help stop leaks and prevent corrosion. Check petcock opening making sure the petcock can be easily installed. Petcock fitting should be masked or plugged during painting for easy installat ion of the petcock. All tanks or tank sets will require hand fitting to give correct alignment for dash and fuel line fitment. Dash will also have to be shimmed when installed to achieve correct height. Tanks accepts cateye style dashes only. The lower bracket is a full circle around the petcock hole. *Note: UPS may consider this part as packaged oversize for shipment as compared to the actual weight which will result in higher shipping costs.
Country Of Origin: TAIWAN
38-0232 - Fuel Petcock Shut-Off Rod Kit
9893-18 - Parkerized Gas Tank Mounting Kit
38-0140 - Bobbed 3.5 Gallon Gas Tank Set
38-0509 - Bobbed 3.5 Gallon Gas Tank Set
Tech Notes: Suggested to use #41-0113 Kreem gas tank combo kit. Suggested to use #49-0076 shift gate for 4-speed transmissions. Suggested to use #49-0073 shift gate for 3-speed transmissions.
Measurement: Tunnel Length:
